首页工业级系统无风扇嵌入式系统 EC500-KH

Three independent displays: 1 VGA + 1 DVI/HDMI + 1 HDMI/DP

Rugged and Fanless Embedded System

Rich I/O connectivity: 2 GbE, 4 COM, 4 USB 3.0, 2 USB 2.0, 1CFast

Supports 2 Mini PCIe and 1 M.2 NVMe slots

Supports DDR4 SODIMM up to 32GB

Operating Temperature: -20 to 60°C, -40 to 70°C (optional)

15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

状态 : 上市产品线上购买 (US)

+加入比较表 +加入询价表

产品比较
目前共有 0 样产品可同时比较三款产品
前往比较

加入询价表
目前共有 0 样产品可同时询价三款产品
前往询价

EC500-KH 嵌入式系统解决方案采用： DFI特规主机板

系统

处理器

7th Generation Intel® Core™ Processors, BGA 1440
Intel® Xeon® Processor E3-1535M v6, Quad Core, 8M Cache, 3.1GHz (4.2GHz), 45W
Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W
Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W
Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W
Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W
Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W

芯片组

Intel® CM238 Chipset
Intel® QM175 Chipset

内存

Two 260-pin SODIMM up to 32GB (CM238 supports ECC)
Dual Channel DDR4 2400MHz

BIOS

Insyde SPI 128Mbit

显示

控制器

Intel® HD Graphics

特性

OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8

显示器

1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP (DP available upon request)
VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
DP: resolution up to 4096x2304 @ 60Hz

三重显示

VGA + HDMI/DVI (DVI-D signal) + HDMI/DP

储存

外插/内插

1 x 2.5" SATA 3.0 Drive Bay
1 x CFast Socket

扩充

界面

1 x Full-size Mini PCIe with micro SIM socket (PCIe/USB)
1 x Full-size Mini PCIe with micro SIM socket (USB)
1 x M.2 2280 M key (PCIe x4 NVMe, Intel optane memory support)

以太网路

控制器

1 x Intel® I211AT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

LED

指示灯

1 x Power LED
1 x Status LED
1 x HDD LED

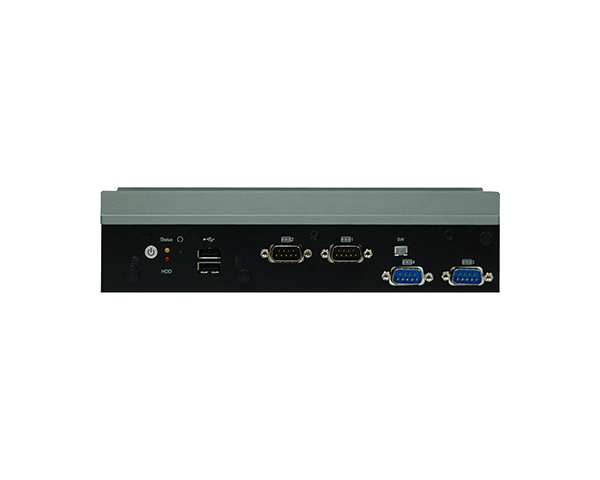

前板输入/输出

串口

2 x RS-232/422/485 (DB-9) (RS-232 with power)
2 x RS-232/422/485 (DB-9)

USB

2 x USB 2.0 (type A)

按键

1 x Power Button
1 x Reset Button

天线

3 x Antenna Hole

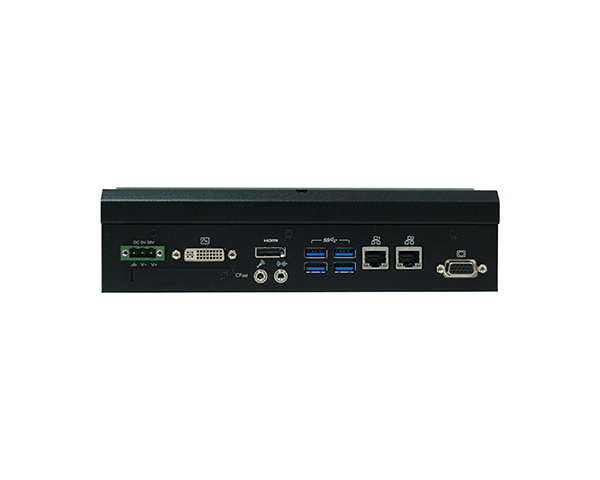

背板输入/输出

以太网络

2 x GbE (RJ-45)

USB

4 x USB 3.0 (type A)

显示

1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP (DP available upon request)

音源

1 x Line-out
1 x Mic-in (available upon request)

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

TPM 2.0 (optional)

电源

类型

Wide Range 9~36V

端口

3-pole Terminal Block
2-pin Power Extension Switch Connector

支持操作系统

Windows 10 IoT Enterprise LTSB 64 Bit
Linux (available upon request)

环境指标

运作温度

0 to 50°C (HDD)
-20 to 60°C (SSD)
-40 to 70°C (optional)

储存温度

-20 to 85°C

相对湿度

5 to 95% RH (non-condensing)

机械结构

结构

Metal + Aluminum

安装方式

Wall Mount

尺寸 (宽 x 高 x 深)

235 x 60.89 x 222mm

重量

3.5kg

安规认证

冲击测试

Half sine wave 3G, 11ms, 3 shock per axis

抗振动测试

IEC68-2-64

认证

CE, FCC Class A, Microsoft Azure

装箱单

1 EC500-KH system unit
1 Extend power switch cable
1 terminal block 3pole for DC input
1 cable with 2 wire stripped and tinned to DC jack

订购资讯

型号料号描述
型号 :
EC500-KH 料号 :
750-EC5002-000G 描述 :
EC500-KH Fanless, KH263-QM175, I7-7820EQ, VGA/DVI/HDMI, 4 COM, 6 USB, 2 LAN, -40 to +70C . DC 9~36V input, F/G SYSTEM RoHS
型号 :
EC500-KH 料号 :
750-EC5002-100G 描述 :
EC500-KH Fanless, KH263-QM175, I3-7102E, VGA/DVI/HDMI, 4 COM, 6 USB, 2 LAN, -40 to +70C . DC 9~36V input, F/G SYSTEM RoHS
型号 :
EC500-KH 料号 :
750-EC5002-200G 描述 :
EC500-KH Fanless,KH263-CM238, E3-1535M v6, VGA/DVI/HDMI, 4 COM, 6 USB, 2 LAN, DC 9~36V input, F/G SYSTEM RoHS
型号 :
EC500-KH 料号 :
750-EC5002-300G 描述 :
EC500-KH Fanless, KH263-QM175, I5-7440EQ, VGA/DVI/DP, 4 COM, 6 USB, 2 LAN, -40 to +70C . DC 9~36V input, F/G SYSTEM RoHS

选购品

品名料号描述
品名 :
M.2 SSD 料号 :
785-M2PCIE032G
785-M2PCIE064G
785-M2PCIE128G
785-M2PCIE256G 描述 :
32GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
64GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
128GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
256GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
品名 :
2.5" SSD 料号 :
785-S25032G
785-S25064G
785-S25128G
785-S25256G
785-S25512G 描述 :
32GB, 2.5" SSD, SATA3, MLC, RoHS
64GB, 2.5" SSD, SATA3, MLC, RoHS
128GB, 2.5" SSD, SATA3, MLC, RoHS
256GB, 2.5" SSD, SATA3, MLC, RoHS
512GB, 2.5" SSD, SATA3, MLC, RoHS
品名 :
CFast 料号 :
785-CFS256G
785-CFS128G
785-CFS64G
785-CFS32G
785-CFS16G
785-CFS8G 描述 :
256GB CFast, RoHS
128GB CFast, RoHS
64GB CFast, RoHS
32GB CFast , RoHS
16GB CFast, RoHS
8GB CFast, RoHS
品名 :
Wi-Fi/BT Kit 料号 :
612-WPEQ26-000G 描述 :
MINI-CARD 802.11ac/a/b/g/n+BT, 2T2R, WPEQ-261ACN(BT), SPARKLAN
品名 :
Power Cord 料号 :
785-PWRD 描述 :
Power Cord, Standards (USA/EUR/CH/UK), 1.8m, RoHS
品名 :
Power Adapter 料号 :
671-110002-100G
671-110003-100G
671-112005-100G
671-116003-000G 描述 :
100W, 12V, Level 6, RoHS
120W, 19V, Level 6, RoHS
120W, 24V, Level 6, Wide Temp, RoHS
160W, 19V, Level 6, RoHS
品名 :
Wall Mount 料号 :
761-EC5410-000G 描述 :
Wall Mount Kit, RoHS
品名 :
SO-DIMM 料号 :
138-540002-106G
138-580004-102G
138-5G0163-102G
138-580004-104G
138-5G0163-103G
138-540002-107G
138-580004-103G
785-RSOD44G
785-RSOD48G
785-RSOD416G
785-RSOD432G 描述 :
4GB DDR4 2666Mhz SO-DIMM 1Rx8 512Mx8 CL19 1.2V
8GB DDR4 2666Mhz SO-DIMM 1Rx8 1Gx8 CL19 1.2V
16GB DDR4 2666Mhz SO-DIMM 2Rx8 1Gx8 CL19 1.2V
8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V, wide temp.
16GB DDR4 2666Mhz SO-DIMM 2Rx8 IND 1Gx8 CL19 1.2V, wide temp.
4GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 512Mx8 CL19 1.2V
8GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 1Gx8 CL19 1.2V
SODIMM, DDR4 Module, 4GB, RoHS
SODIMM, DDR4 Module, 8GB, RoHS
SODIMM, DDR4 Module, 16GB, RoHS
SODIMM, DDR4 Module, 32GB, RoHS
