Name: RPS183
Brand: DFI

US Store

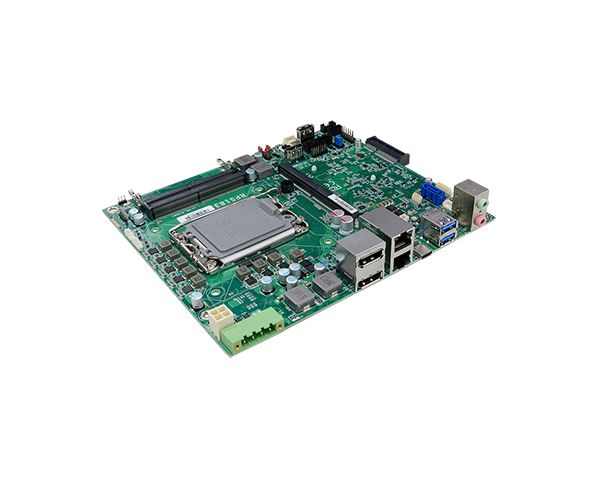

RPS183

产品概要

首页工业级主机板 Mini-ITX RPS183

14th/13th/12th Gen Intel® Core Processors

2 DDR5 SODIMM up to 64GB

Multiple Display: 1 DP++(CPU), 1 DP++(MXM), 1 USB Type C(DP Alt-mode), 1 eDP(MXM), 1 internal HDMI(MXM)

Support MXM module, with 1 internal HDMI, 1 eDP and 1 external DP++

Multiple Expansion: 1 PCIe x4(side), 1 M.2 M key, 1 M.2 E Key, 1 M.2 B Key

Rich I/O: 2 Intel® 2.5GbE, up to 4 USB 3.2 Type A, up to 1 USB Type C

Wide Range power input 19~24V

Typically supports 10-Year CPU Life Cycle Until Q1’ 38 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.Support EXT-OOB (Full)

状态 : 初版前往询价

+加入比较表 +加入询价表

产品比较
目前共有 0 样产品可同时比较三款产品
前往比较

加入询价表
目前共有 0 样产品可同时询价三款产品
前往询价

系统

处理器

14th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-14900 (24 Cores, 36M Cache, up to 5.8 GHz); 65W
Intel® Core™ I9-14900T (24 Cores, 36M Cache, up to 5.5 GHz); 35W
Intel® Core™ I7-14700 (20 Cores, 33M Cache, up to 5.4 GHz); 65W
Intel® Core™ I7-14700T (20 Cores, 33M Cache, up to 5.2 GHz); 35W
Intel® Core™ I5-14500 (14 Cores, 24M Cache, up to 5.0 GHz); 65W
Intel® Core™ I5-14500T (14 Cores, 24M Cache, up to 4.8 GHz); 35W
Intel® Core™ I5-14400 (10 Cores, 20M Cache, up to 4.7 GHz); 65W
Intel® Core™ I5-14400T (10 Cores, 20M Cache, up to 4.5 GHz); 35W
Intel® Core™ I3-14100 (4 Cores, 12M Cache, up to 4.7 GHz); 60W
Intel® Core™ I3-14100T (4 Cores, 12M Cache, up to 4.4 GHz); 35W
Intel® 300 (2 Cores,6M Cache, 3.9 GHz); 46W
Intel® 300T (2 Cores, 4M Cache, 3.4 GHz); 35W

13th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ I9-13900E (24 Cores, 36M Cache, up to 5.2 GHz); 65W
Intel® Core™ I9-13900TE (24 Cores, 36M Cache, up to 5.0 GHz); 35W
Intel® Core™ I7-13700E (16 Cores, 30M Cache, up to 5.1 GHz); 65W
Intel® Core™ I7-13700TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ I7-13700T (16 Cores, 30M Cache, up to 4.9 GHz); 35W
Intel® Core™ I5-13500E (14 Cores, 24M Cache, up to 4.6 GHz); 65W
Intel® Core™ I5-13500TE (14 Cores, 24M Cache, up to 4.5 GHz); 35W
Intel® Core™ I5-13500T (14 Cores, 24M Cache, up to 4.6 GHz); 35W
Intel® Core™ I5-13400E (10 Cores, 20M Cache, up to 4.6 GHz); 65W
Intel® Core™ I3-13100E (4 Cores, 12M Cache, up to 3.3 GHz); 60W
Intel® Core™ I3-13100TE (4 Cores, 12M Cache, up to 4.1 GHz); 35W
Intel® Core™ I3-13100T (4 Cores, 12M Cache, up to 4.2 GHz); 35W

12th Generation Intel® LGA 1700 Socket Processors, TDP support up to 65W
Intel® Core™ i9-12900E (16 Cores, 30M Cache, up to 5.0 GHz); 65W
Intel® Core™ i9-12900TE (16 Cores, 30M Cache, up to 4.8 GHz); 35W
Intel® Core™ i7-12700E (12 Cores, 25M Cache, up to 4.8 GHz); 65W
Intel® Core™ i7-12700TE (12 Cores, 25M Cache, up to 4.6 GHz); 35W
Intel® Core™ i5-12500E (6 Cores, 18M Cache, up to 4.5 GHz); 65W
Intel® Core™ i5-12500TE (6 Cores, 18M Cache, up to 4.3 GHz); 35W
Intel® Core™ i3-12100E (4 Cores, 12M Cache, up to 4.2 GHz); 60W
Intel® Core™ i3-12100TE (4 Cores, 12M Cache, up to 4.0 GHz); 35W
Intel® Pentium® G7400E (2 Cores, 6M Cache, 3.6 GHz); 46W
Intel® Pentium® G7400TE (2 Cores, 6M Cache, 3.0 GHz); 35W
Intel® Celeron® G6900E (2 Cores, 4M Cache, 3.0 GHz); 46W
Intel® Celeron® G6900TE (2 Cores, 4M Cache, 2.4 GHz); 35W

芯片组

RPS183-Q670E

Intel® Q670E Chipset

RPS183-H610E

Intel® H610E Chipset

内存

2x 262-pin SODIMM up to 64GB
Dual Channel DDR5 4800MHz

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® UHD Graphics 700 series

特性

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

显示器

1 x DP++ (CPU): Resolution up to 4096x2304 @ 60Hz
1 x DP++ (MXM): Resolution by MXM
1 x USB Type C: DP Alt-mode, Resolution up to 4096x2304 @60Hz
1 x eDP(MXM): Resolution by MXM
1 x Internal HDMI: Resolution by MXM

多重显示

1 DP++(CPU) + 1 DP++(MXM) + 1 USB Type C(DP Alt-mode) + 1 eDP(MXM) + 1 internal HDMI(MXM)

扩充

界面

RPS183-Q670E

1 x PCIe Gen 3 x4 (Locate at board side)

RPS183-Q670E

1 x M.2 2280 M Key (PCIE Gen3x4, SATA3)

RPS183-Q670E

1 x M.2 2230 E Key (PCIE Gen3x, USB 2.0, support Intel® CNVi)

RPS183-Q670E

1 x MXM Type-A/B/B+

RPS183-Q670E

1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB 3.2 Gen2, USB 2.0)

RPS183-H610E

1 x M.2 2280 M Key (PCIE Gen3x4, SATA3)

RPS183-H610E

1 x M.2 2230 E Key (PCIE Gen3x, USB 2.0, support Intel® CNVi)

RPS183-H610E

1 x MXM Type-A/B/B+

RPS183-H610E

1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB 3.2 Gen1, USB 2.0)

音讯

音讯编译码器

Realtek ALC888S

以太网路

控制器

RPS183-Q670E

1 x Intel® I226LM(vPro)(10/100/1000/2500Mbps)

RPS183-Q670E

1 x Intel® I226V (10/100/1000/2500Mbps)

RPS183-H610E

1 x Intel® I219V (10/100/1000/2500Mbps)

RPS183-H610E

1 x Intel® I226V (10/100/1000/2500Mbps)

背板输入/输出

以太网络

2 x 2.5GHz RJ45

USB

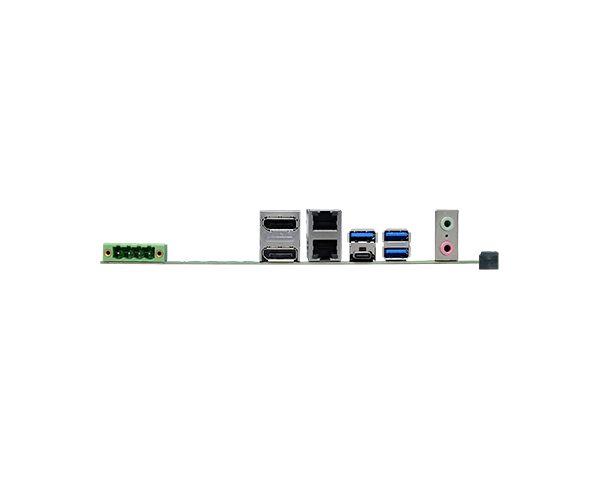

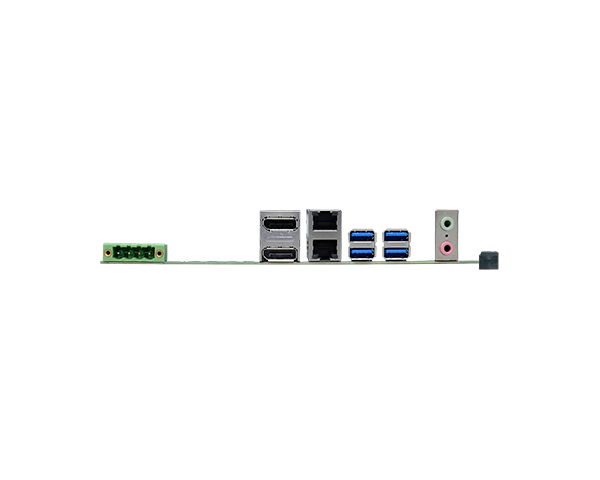

RPS183-Q670E

4 x USB 3.2 Gen2 or

RPS183-Q670E

3 x USB 3.2 Gen2 + 1 x USB Type C

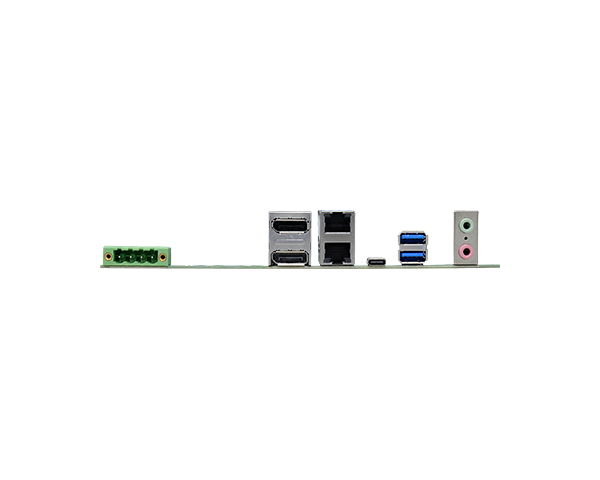

RPS183-H610E

2 x USB 3.2 Gen2 + 2 x USB 2.0 or

RPS183-H610E

2 x USB 3.2 Gen2 + 1 x USB Type C

显示

1 x DP++, 1 DP++(MXM)
1 x USB Type C

音源

1 Audio Jack (Line-out/Mic-in) (Audio header by opt.)

内部输入/输出

串行端口

2 x RS-232/422/485

USB

2 x USB 3.2 Gen1 Header
1 x USB 2.0 Type A

显示

1 x eDP(MXM)
1 x HDMI(MXM)

SATA

1 x SATA 3.0

DIO

1 x 8-bit DIO (BOX HEADER 1*10P/1.00mm)

I2C

2 x I2C (BOX HEADER, 1*5P/1.0m)

风扇

1 x CPU, 2 x System (WAFER,1*4P/1.25mm)

SPI

1 x SPI (BOX HEADER 1*7P/1.25mm)(For OOB)

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

dTPM (default)
fTPM (option)

电源

类型

DC IN

端口

4-pin Terminal 19~24V DC-In

耗能

Idle: i9-13900E 65W with MXM A4500 : 24V @ 2.03A (48.72W), 19V @ 2.50A (47.50W)
Max: i9-13900E 65W with MXM A4500: 24V @ 11.66A (279.84W), 19V @ 14.73A (279.87W)

Idle: i9-13900E 65W : 24V @ 2.60A (62.40W), 19V @ 3.13A (59.47W)
Max: i9-13900E 65W: 24V @ 6.40A (153.60W), 19V @ 8.08A (153.52W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows 10 IoT Enterprise 64-bit
Windows 11 LTSC

Linux

Linux Ubuntu 22.04

环境指标

温度

Operating w/o MXM: -5°C ~ 65°C
Operating w/i MXM: By MXM spec
Storage: -40°C ~ 85°C

湿度

Operating: 5% ~ 90% RH
Storage: 5% ~ 90% RH

MTBF

RPS183-Q670E

RPS183-Q670E 480,169 hrs @ 25°C; 281,641 hrs @ 45°C; 182,084 hrs @ 60°C;

RPS183-Q670E

Calculation model: Telcordia Issue 4

RPS183-Q670E

Environment: GB, GC – Ground Benign, Controlled

RPS183-H610E

RPS183-H610E 480,169 hrs @ 25°C; 281,641 hrs @ 45°C; 182,084 hrs @ 60°C;

RPS183-H610E

Calculation model: Telcordia Issue 4

RPS183-H610E

Environment: GB, GC – Ground Benign, Controlled

机械结构

尺寸

195mm (7.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 26.0mm(Audio); 25.79mm(RJ45)
Bottom Side: 13.53mm

安规认证

认证

CE, FCC, RoHS

装箱单

· 1 RPS183 motherboard
· 1 Serial ATA data cable (Length: 500mm)
· 3 M.2 screw/standoff

订购资讯

型号料号描述
型号 :
RPS183-H610EDB 料号 :
770-RPS1831-000G 描述 :
RPS183-H610EDB, 2 DDR5, Rear I/O (2 DP*++, 2 LAN, 2 USB 3.2 Gen2, 1 USB Type C), Internal I/O (1 M.2 M/B/E Key, 1 eDP*, 1 HDMI*, 2 USB 3.2 Gen1, 1 USB 2.0 Type A), w/TPM, DC19~24V, -5 to 65°C
型号 :
RPS183-Q670EDB 料号 :
770-RPS1831-100G 描述 :
RPS183-Q670EDB, 2 DDR5, Rear I/O (2 DP*++, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (1 M.2 M/B/E Key, 1 eDP*, 1 HDMI*, 2 USB 3.2 Gen1, 1 USB 2.0 Type A), w/TPM, DC19~24V, -5 to 65°C
型号 :
RPS183-H610EDB 料号 :
770-RPS1831-200G 描述 :
RPS183-H610EDB, 2 DDR5, Rear I/O (2 DP*++, 2 LAN, 2 USB 3.2 Gen2, 2 USB 2.0 Type A), Internal I/O (1 M.2 M/B/E Key, 1 eDP*, 1 HDMI*, 2 USB 3.2 Gen1, 1 USB 2.0 Type A), w/TPM, DC19~24V, -5 to 65°C
型号 :
RPS183-Q670EDB 料号 :
770-RPS1831-300G 描述 :
RPS183-Q670EDB, 2 DDR5, Rear I/O (2 DP*++, 2 LAN, 4 USB 3.2 Gen2), Internal I/O (1 M.2 M/B/E Key, 1 eDP*, 1 HDMI*, 2 USB 3.2 Gen1, 1 USB 2.0 Type A), w/TPM, DC19~24V, -5 to 65°C

* (NOTE: * Full functionality requires MXM implementation)

选购品

品名料号描述
品名 :
Active Thermal Solution(65W) 料号 :
A71-101137-000G 描述 :
Thermal solution (For 65W, Height: 46mm)
品名 :
Active Thermal Solution(35W) 料号 :
A71-101136-000G 描述 :
Thermal solution (For 35W, Height: 39mm)
品名 :
PSU(450W, 24V) 料号 :
671-745001-000G 描述 :
Meanwell HRP-450-24
品名 :
Power adapter (360W, 24V) 料号 :
671-136001-000G 描述 :
Meanwell GST360B24-C6P
品名 :
Power adapter (160W, 24V) 料号 :
671-116005-000G 描述 :
Meanwell GST160A24-DFIA
品名 :
Power terminal converting cable (Spade-to-Phoenix 4P) 料号 :
A81-004398-018G 描述 :
20cm, for Meanwell HRP-450-24
品名 :
Power terminal converting cable (ATX 6P-to-Phoenix 4P) 料号 :
A81-004397-018G 描述 :
20cm, for Meanwell GST360B24-C6P
品名 :
Power terminal converting cable (DC5.5-to-ATX 2x2P) 料号 :
A81-004110-009G 描述 :
20cm, for Meanwell GST160A24-DFIA
