VC700-ASL

产品概要

首页特定应用系统车载专用系统 VC700-ASL

Intel Atom® Amston Lake x7835RE 8-core 1.3GHz/3.6GHz 12W processor

ITxPT certified in vehicle computing system with compact and fanless design

Build-in OOB to support remote management

Build-in 9 axis sensor for driver detection within fleet management

2 x Mini-PCIe and 3 M.2 sockets for CAN bus/GPS/LTE/5G/WiFi/Storage modules

Build-in Audio Amp to driver 10W speaker

2.5KV Isolated 8bits DIO ports

Wide voltage: 9~36V vehicle power input with ACC/IGN function

状态 : 初版前往询价

+加入比较表 +加入询价表

产品比较
目前共有 0 样产品可同时比较三款产品
前往比较

加入询价表
目前共有 0 样产品可同时询价三款产品
前往询价

系统

处理器

Intel® Atom x7000E processors (Code Name : Amston Lake)
Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W

内存

4GB/8GB LPDDR5 5200 Memory down

BIOS

AMI SPI 64Mbit

显示

控制器

Intel® HD Graphics

特性

Execution Units: Up to 32 Eus
3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) / Mesa 3D,OpenGL 4.6, Vulkan 1.2 (Linux)
Precision: FP32, FP16, INT8
Compute: OpenCL 3.0

显示器

1 x HDMI 1.4b (resolution up to 4096x2160 @ 24Hz)
1 x VGA (resolution up to 1920x1200 @ 60Hz)

储存

外插

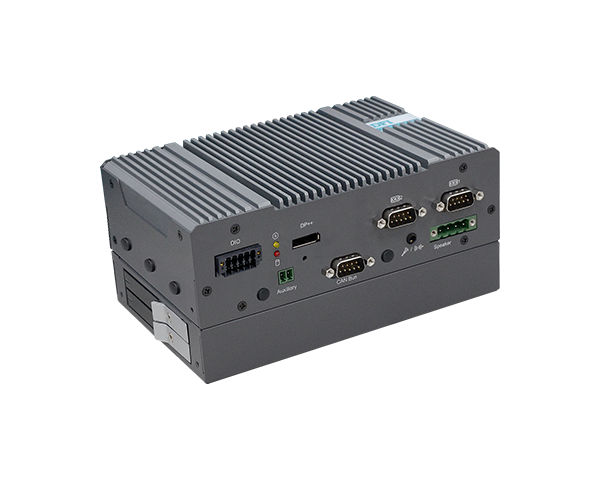

2 x swappable 2.5" SATA drive bays (option)

内插

eMMC 64GB (Removeable)

扩充

界面

1 x M.2 2230 A+E key (USB 2.0/PCIe)
1 x M.2 3042/3052 B key (USB 3.0/PCIe) with SIM
1 x M.2 2242/2280 B+M key (PCIe/SATA)
2 x Mini-PCIe (1 Half; 1 Full) (USB 2.0)

以太网路

控制器

2 x Intel Ethernet controller i210 GbE

界面

2 x RJ45 GbE ports

全球卫星导航系统

Support GPS, QZSS, Gallileo, GLONASS, BeiDou by u-blox NEO-M9N
Dead reckoning support upon request

LED

指示灯

1 x Power LED
1 x Storage LED
2 x Programmable LED (Green, Blue)

傳感器

SENSOR Sensor 9 axis IMU (3 Accelerometer + 3 Gyroscope + 3 Magnetometer)

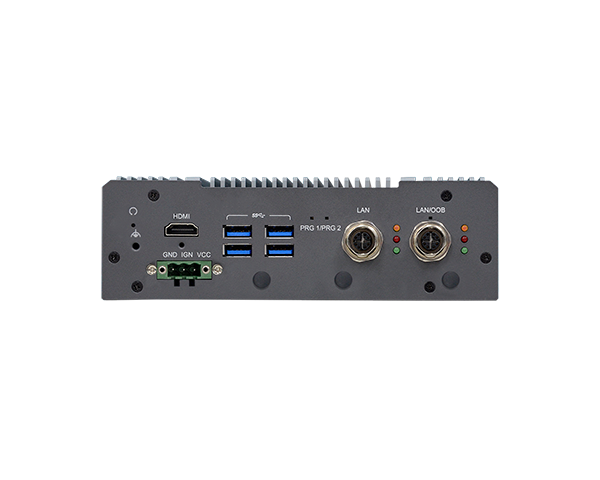

前板输入/输出

以太网络

2 x GbE (M12 X-code)
1 share with OOB

USB

4 x USB 3.2 type A

显示

1 x HDMI

按键

1 x Reset button

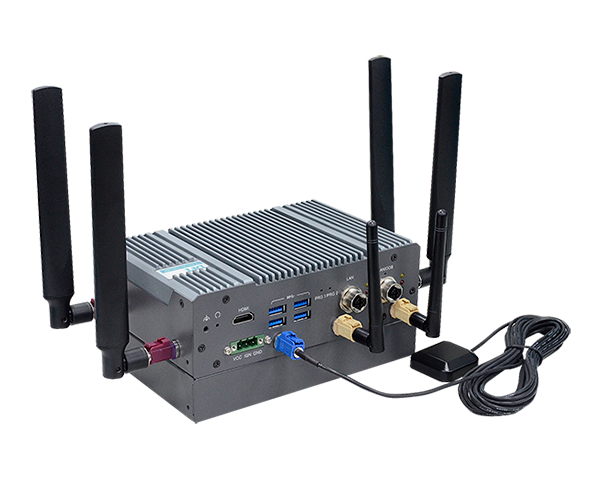

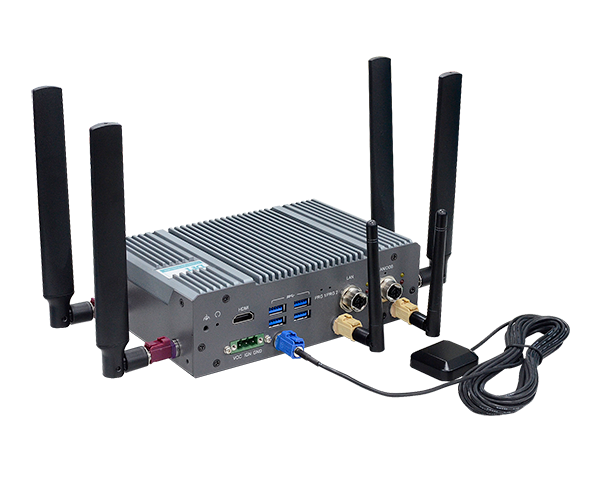

天线

3 x Fakra antenna holes

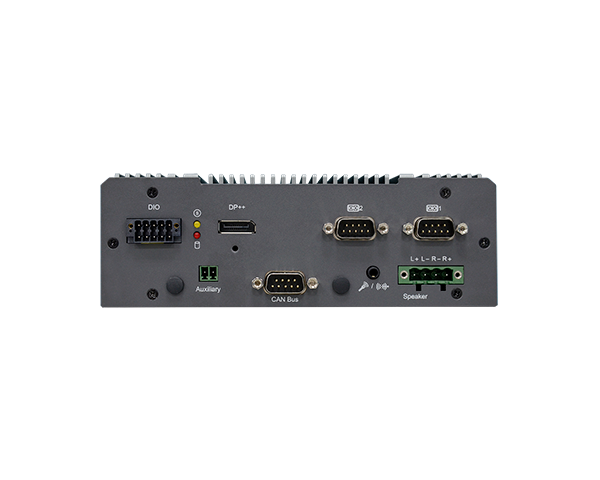

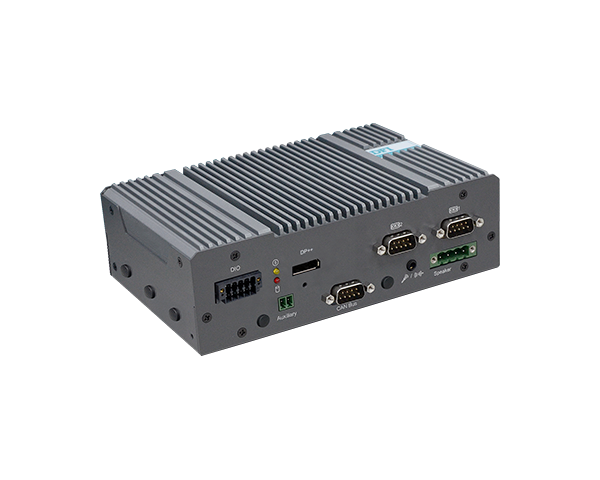

背板输入/输出

串口

2 x RS-232/422/485 (DB9-M)

DIO

Isolated 8 bits DIO with 2.5KV isolation (DB15-M)
Input voltage: 0 to 30VDC
Output current: 50mA pre pin and Max. 200mA total
On-state voltage: 12VDC nominal, open collector to 30VDC.

显示

1 x VGA

音源

Stereo speaker with Amplifier to drive 10W speaker (4 pin Terminal)
1 x 3.5mm Line out/Mic In

CANBus

2 x CAN 2.0B (DB9-M)
Support J1939

侧面输入/输出

天线孔

2 x Fakra antenna holes
2 x Fakra antenna holes

监视定时器

看门狗定时器

System reset, programmable via software from 1 to 255 seconds

安全性

信赖平台模块

TPM 2.0 (NUVOTON)

电源

类型

Wide range 9~36V with ignition control

端口

3-pole terminal block

支持操作系统

微软

Windows 10/11

Linux

Linux Ubuntu 22.04

环境指标

温度

Operating: -40 to 70°C
Storage: -40 to 85°C

机械结构

结构

Aluminum + SPGC Metal

安装方式

Wall mount

尺寸 (宽 x 高 x 深)

182.4mm x 56.5mm x 118.4mm (W x H x D)
182.4mm x 87.5mm x 118.4mm (W x H x D) (2.5" SATA drive bays)

重量

TBD

颜色

Black

安规认证

冲击测试

Operating/non-operating: MIL-STD-810G Method 516.6, Procedure 1

抗振动测试

Operating/non-operating: MIL-STD-810G Method 514.6, Category 4

认证

CE, FCC, E-Mark (E24), ITxPT, RoHS, UKCA (To be updated)
