KB968｜AMD®｜嵌入式电脑模块｜友通资讯 DFI

AMD® Embedded G-Series SoC FT3 BGA
AMD® GX-415GA, Quad Core, 2M Cache, 1.5GHz, 15W
AMD® GX-420CA, Quad Core, 2M Cache, 2.0GHz, 25W
AMD® GX-217GA, Dual Core, 1M Cache, 1.65GHz, 15W
AMD® GX-210HA, Dual Core, 1M Cache, 1.0GHz, 9W
AMD® GX-210JA, Dual Core, 1M Cache, 1.0GHz, 6W
AMD® GX-416RA, Quad Core, 2M Cache, 1.6GHz, 15W, without GPU

One 204-pin SODIMM up to 8GB
Dual Channel DDR3 1600MHz

32Mbit SPI

Advanced discrete-level GPU integrated in the processor

Supports hardware acceleration for DirectX 11.1, H.264, MPEG-2, MPEG-4 AVC, VC-1 and WMV

1 x VGA
1 x LVDS/DP
1 x DP
VGA: resolution up to 2048x1536 @ 60Hz
LVDS: single channel 18-bit, resolution up to 1600x900 @ 60Hz
DP: resolution up to 4096x2160 @ 30Hz

1 x PCIe x4 (GFX)
4 x PCIe x1 (GPP, GPP3 is connected to onboard LAN by default)
1 x LPC
1 x I2C
1 x SMBus
2 x Serial (TX/RX)

HD Audio

1 x Intel® WGI210AT (10/100/1000Mbps)

2 x USB 3.0
6 x USB 2.0

2 x SATA 3.0 (up to 6Gb/s)

1 x 2GB/4GB8GB/16GB/32GB/64GB SSD (available upon request)

1 x 8-bit DIO

System Reset, Programmable via Software from 1 to 255 Seconds

Available Upon Request

12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)

KB968-GX420BBS: 28.58 W with GX-420CA at 2.0GHz and 1 x 4GB DDR3 SODIMM

Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)

Operating: 0 to 60°C
Storage: -20 to 85°C

Operating: 10 to 90% RH
Storage: 10 to 90% RH

TBD

COM Express® Compact 95mm (3.74") x 95mm (3.74")

PICMG COM Express® R2.1, Type 6

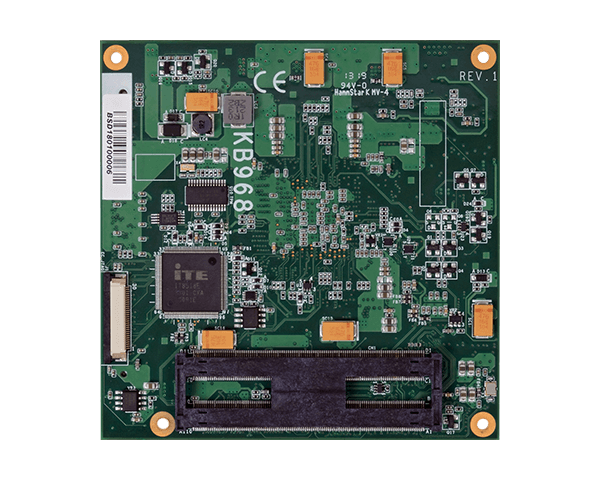

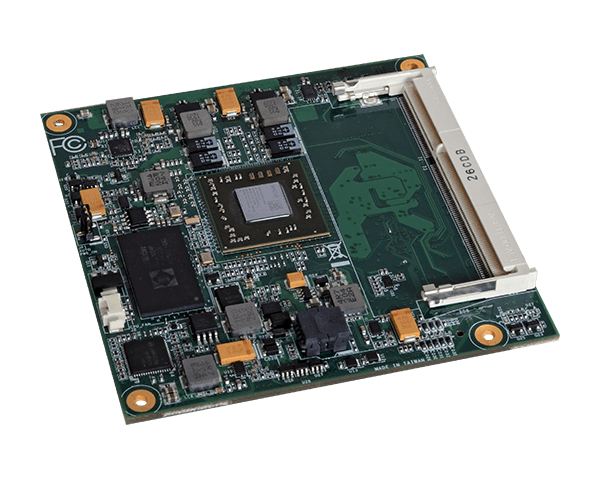

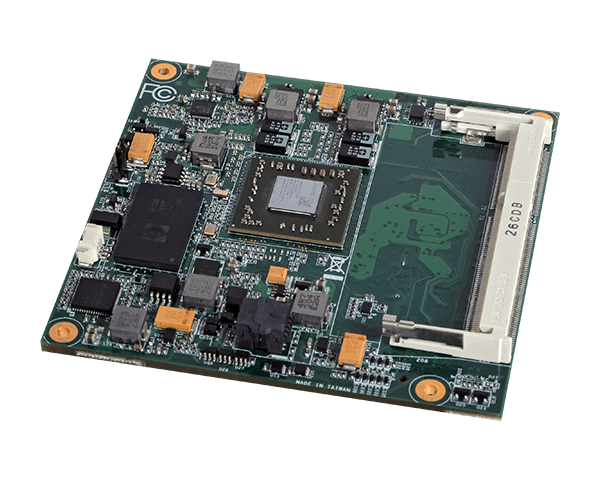

1 KB968 board
Heat spreader with heat sink and fan: 761-KB9680-000G
