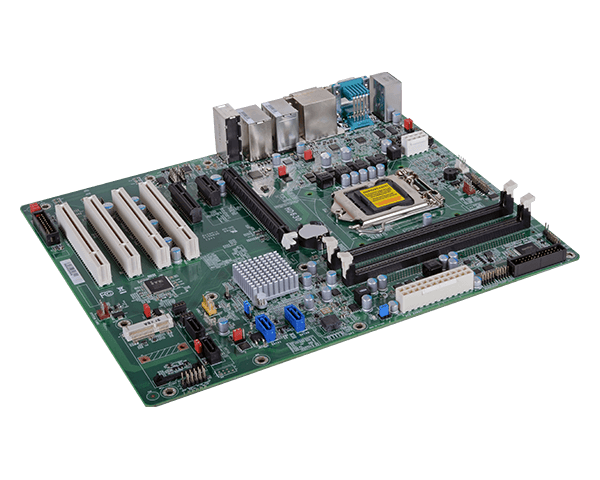

HD630-H81｜Intel®｜工业级主机板｜友通资讯 DFI

4th Generation Intel® Core™ processors, LGA 1150 socket
Intel® Core™ i7-4790S Processor, 8M Cache, 4.0 GHz, 65W
Intel® Core™ i7-4770S Processor, 8M Cache, 3.9 GHz, 65W
Intel® Core™ i7-4770TE Processor, 8M Cache, 3.3 GHz, 45W
Intel® Core™ i5-4590S Processor, 6M Cache, 3.7 GHz, 65W
Intel® Core™ i5-4590T Processor, 6M Cache, 3.0 GHz, 35W
Intel® Core™ i5-4570S Processor, 6M Cache, 3.6 GHz, 65W
Intel® Core™ i5-4570TE Processor, 4M Cache, 3.3 GHz, 35W
Intel® Core™ i3-4360 Processor, 4M Cache, 3.7 GHz, 54W
Intel® Core™ i3-4350T Processor, 4M Cache, 3.1 GHz, 35W
Intel® Core™ i3-4340TE Processor, 4M Cache, 2.6 GHz, 35W
Intel® Core™ i3-4330 Processor, 4M Cache, 3.5 GHz, 54W
Intel® Core™ i3-4330TE Processor, 4M Cache, 2.4 GHz, 35W
Intel® Pentium® G3420 Processor, 3M Cache, 3.2 GHz, 53W
Intel® Pentium® G3320TE Processor, 3M Cache, 2.3 GHz, 35W
Intel® Celeron® G1820 Processor, 2M Cache, 2.7 GHz, 53W
Intel® Celeron® G1820TE Processor, 2M Cache, 2.2 GHz, 35W

Intel® H81 Chipset

Two 240-pin DIMM up to 16GB Dual Channel DDR3 1333/1600MHz

AMI SPI 64Mbit

Intel® HD Graphics

OpenGL 4.0, DirectX 11.1

1 x DVI-I
1 x HDMI
HDMI: resolution up to 4096x2304 @ 24Hz or 2560x1600 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz

1 x PCIe x16 (Gen 2)
1 x PCIe x4 (Gen 2)
1 x PCIe x1 (Gen 2)
4 x PCI
1 x Mini PCIe

Realtek ALC886

1 x Intel® I210 PCIe (10/100/1000Mbps)
1 x Intel® I217LM (10/100/1000Mbps)

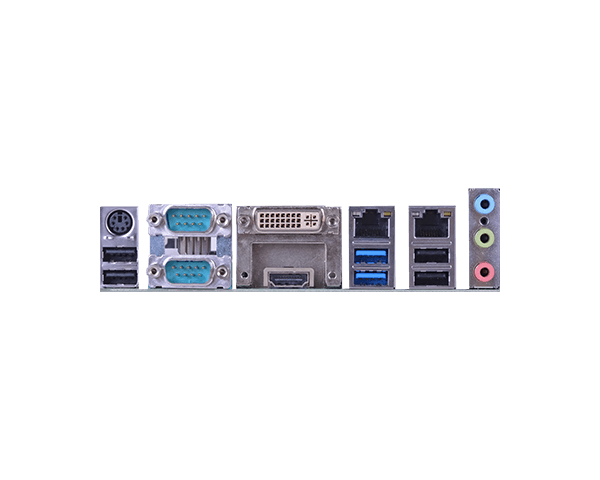

2 x GbE (RJ-45)

2 x RS-232/422/485 (RS-232 w/ power) (DB-9)

2 x USB 3.0
4 x USB 2.0

1 x PS/2 (mini-DIN-6)

1 x DVI-I
1 x HDMI

1 x Line-out
1 x Mic-in
1 x Line-in

4 x RS-232 (2.0mm pitch)

2 x USB 2.0 or 1 Vertical USB 2.0*

1 x Audio (Line-out/Mic-in)
1 x S/PDIF

2 x SATA 3.0 (up to 6Gb/s)
2 x SATA 2.0 (up to 3Gb/s)

1 x 8-bit DIO

1 x LPC

System Reset, Programmable via Software from 1 to 255 Seconds

Available Upon Request

ATX

8-pin ATX 12V power
24-pin ATX power

49.85W with i7-4770S at 3.10GHz and 2x 2GB DDR3 DIMM

CR2032 Coin Cell

Windows XP Professional x86 & SP3 (32-bit) (limited function)
Windows 7 Ultimate x86 & SP1 (32-bit)
Windows 7 Ultimate x64 & SP1 (64-bit)
Windows 8 Enterprise x86 (32-bit)
Windows 8 Enterprise x64 (64-bit)
Windows 10 IoT Enterprise (32/64-bit)

Operating: 0 to 60°C
Storage: -20 to 85°C

Operating: 5 to 90% RH
Storage: 5 to 90% RH

452,333 hrs @ 25°C; 255,169 hrs @ 45°C
Calculation model: Telcordia Issue 2, Method I Case 3
Environment: GB, GC – Ground Benign, Controlled

ATX form factor 305mm (12") x 244mm (9.6")

1 HD630 motherboard
1 Serial ATA data cable: 332-553001-005G
1 I/O shield: A49-HD3300-000G
