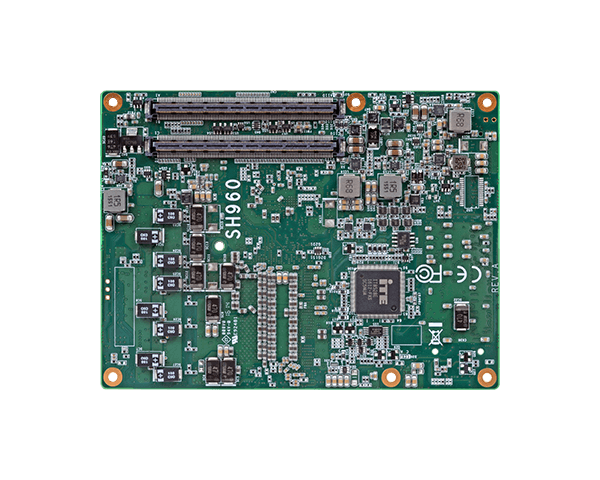

SH960-HM170｜Intel®｜システム・オン・モジュール｜DFI

6th Generation Intel® Core™ Processors, BGA 1440
Intel® Core™ i7-6820EQ Processor, Quad Core, 8M Cache, 2.8GHz (3.5GHz), 45W
Intel® Core™ i7-6822EQ Processor, Quad Core, 8M Cache, 2.0GHz (2.8GHz), 25W
Intel® Core™ i5-6440EQ Processor, Quad Core, 6M Cache, 2.7GHz (3.4GHz), 45W
Intel® Core™ i5-6442EQ Processor, Quad Core, 6M Cache, 1.9GHz (2.7GHz), 25W
Intel® Core™ i3-6100E Processor, Dual Core, 3M Cache, 2.7GHz, 35W
Intel® Core™ i3-6102E Processor, Dual Core, 3M Cache, 1.9GHz, 25W
Intel® Celeron® Processor G3900E, Dual Core, 2M Cache, 2.4GHz, 35W
Intel® Celeron® Processor G3902E, Dual Core, 2M Cache, 1.6GHz, 25W

Intel® HM170 Chipset

Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2133MHz

Insyde SPI 128Mbit

Intel® HD Graphics GT Series

OpenGL up to 4.4, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

1 x VGA/DDI (DDI available upon request)
1 x LVDS/eDP (eDP available upon request)
2 x DDI (HDMI/DVI/DP++)
VGA: resolution up to 1920x1200 @ 60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz or 2560x1600 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
DP++/eDP: resolution up to 4096x2304 @ 60Hz

VGA + LVDS + DDI or VGA + DDI1 + DDI2
eDP + 2 DDI (available upon request)

1 x PCIe x16 or 2 x PCIe x8 (Gen 3)
8 x PCIe x1 or 2 x PCIe x4 or 4 x PCIe x2 (Gen 3)
1 x LPC
1 x I2C
1 x SMBus
2 x UART (TX/RX)

HD Audio

1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)

4 x USB 3.0
8 x USB 2.0

4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10

1 x 8-bit DIO

System Reset, Programmable via Software from 1 to 255 Seconds

Available Upon Request

12V, 5VSB, VCC_RTC (ATX mode)
12V, VCC_RTC (AT mode)

"Typical: 12V @ 2.3850A (28.62Watt)
Max.: 12V @ 5.842A (70.104Watt)"

Windows 7 (/WES7) 32/64-bit
Windows 8.1 (64-bit)
Windows 10 IoT Enterprise 64-bit
Debian 8 (with VESA graphic driver)
CentOS 7 (with VESA graphic driver)
Linux

Operating: 0 to 60°C, -40 to 85°C
Storage: -40 to 85°C

Operating: 5 to 90% RH
Storage: 5 to 90% RH

663,394hrs @ 25°C; 334,612 hrs @ 45°C; 193,307 hrs @ 60°C excluding accessories
Calculation Model: Telcordia Issue 2, Method Case 3
Environment: GB, GC – Ground Benign, Controlled

COM Express® Basic 95mm (3.74") x 125mm (4.9")

PICMG COM Express® R2.1, Type 6

CE, FCC, RoHS

1 SH960-HM170 board
1 Cooler (Height: 36.58mm): A71-111026-000G
