• 1 System unit
• 1 COM cable (Length: 200mm): A81-015127-054G
• 1 USB power cable (Length: 200mm):
　- 000G (USB TYPE C to USB TYPE C): A81-001200-017G
　- 100G (USB TYPE A to USB TYPE C): A81-001199-017G

◆ Out-Of-Band Monitoring and Management Functions
　• Processor: Nuvoton NUC980DK71YC (LQFP-128, 128MB DDR2)
　• Power Cycling:
　　- Enforcement Shutdown
　　- Power Switch On / Off
　　- Reset

◆ Signal Interface
　• Connector: Proprietary M.2 Pin Definition by DFI
　• Factory Reset: Factory Reset Button (5 Seconds Pressed)
　• Configuration Lock: 2 DP switch (default: both disabled)
　• Storage: 128MB SPI NAND Flash
　　　　　　Micro SD Slot (Co-layout with optional eMMC)
　• LED Indicator Lights: MCU Activated

◆ Environment
　• Operating Temperature: -5 to 65ºC (On Industrial Motherboard)
　• Operation Humidity: 5 to 90% (Non-condensing)
　• Storage Temperature: -40 to 85°C
　• Certification: CE / FCC / RoHS & REACH Compliant

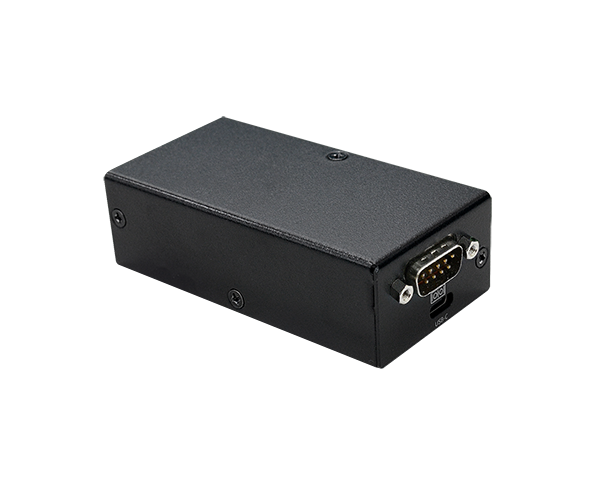

◆ DIMENSIONS: 89.80 x 45.60 x 27mm　

Remote power on / off & reset control
Remote BIOS setup & UEFI shell (Serial over LAN)
Remote BIOS update (SOL & DFI USB-Storage)
Optional Remote Recovery OS Image (UEFI text mode)
