ASL171/ASL173

产品概要

首页工业级主机板 Mini-ITX ASL171/ASL173

Intel® Atom® Amston Lake Processors

1 DDR5 4800MHz SO-DIMM up to 16GB

4K High Resolution: Supports 4K/ 2K resolution

Triple Display: DP++/VGA + HDMI/DP++ + USB-Type C + *M2A-Display (optional)

Rich I/O Connectivity: 2 2.5GbE LAN, up to 4 USB 3.2, 1 USB Type C, 2 SATA3, 4 USB 2.0

Multiple Expansion: 1 M.2 A Key, 1 M.2 B Key, 1 M.2 E Key

Typically supports 5-Year CPU Life Cycle Until Q2’ 29 (Based on Intel IOTG Roadmap), and available for an additional 5 years support under SPS Process.

状态 : 初版前往询价

+加入比较表 +加入询价表

产品比较
目前共有 0 样产品可同时比较三款产品
前往比较

加入询价表
目前共有 0 样产品可同时询价三款产品
前往询价

系统

处理器

Intel® Atom x7000RE series processors (Code Name : Amston Lake)
Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
Intel® Atom Processor x7213RE, 2 Cores, 2.0~3.4GHz, 9W
Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W

内存

One 262-pin SODIMM up to 16GB
Single Channel DDR5 4800MHz

BIOS

AMI SPI 256Mbit

显示

控制器

Intel® UHD Graphics

特性

OpenGL 4.6, Direct X 12.1, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AVC

显示器

1 x DP++/ VGA (Co-layout)
1 x DP++/ HDMI2.0 (Co-layout)
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)
HDMI: resolution up to 3840x2160 @ 24Hz
DP++: resolution up to 3840x2160 @ 60Hz
VGA: resolution up to 2048x1536 @ 60Hz
USB-C: resolution up to 3840x2160 @24Hz

三重显示

DP++/VGA + HDMI/DP++ + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W) + M2A-Display (optional)

扩充

界面

1 x PCIe x4 (PCIe signal x2)
1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1 or SATA3 and USB2.0 wi USB3(opt.))
1 x M.2 2230 E Key (PCIE Gen3x1, USB2.0)
1 x M.2 3060 A Key support DFI M2A-display module (opt. MOQ required)
1 x Nano SIM socket (connected to M.2 B key)

音讯

音讯编译码器

Realtek ALC888S

以太网路

控制器

2 x Intel® I226IT (10/100/1000/2500Mbps)

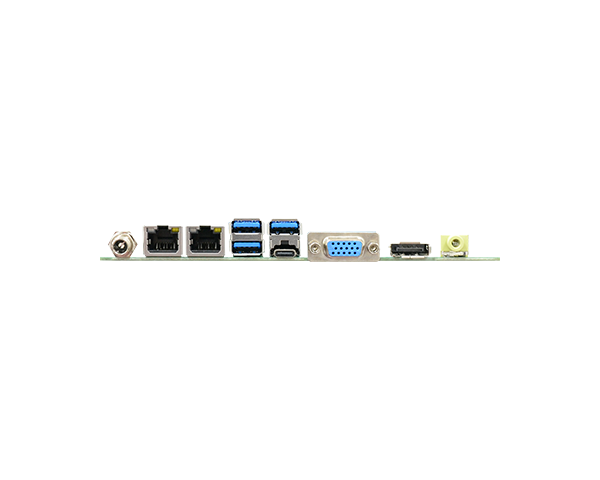

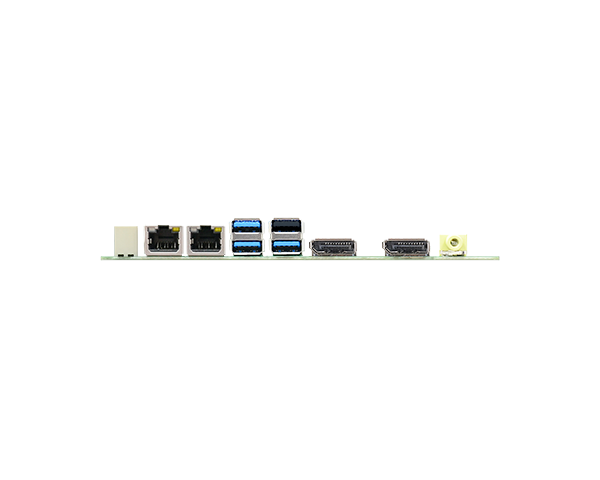

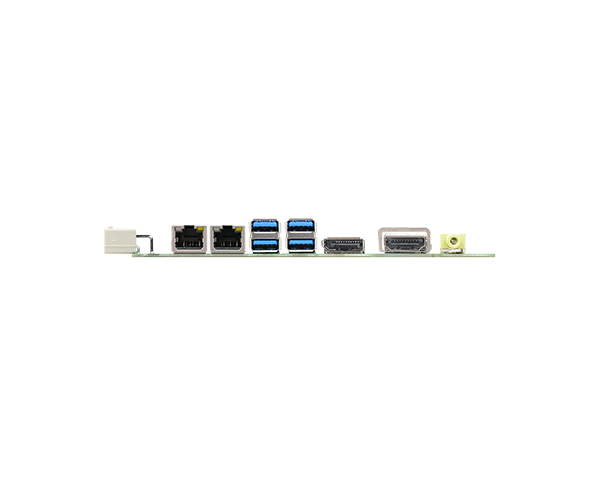

背板输入/输出

以太网络

2 x 2.5GHz RJ45

USB

4 x USB 3.2 Gen2 or 3 x USB 3.2 Gen2 + 1 x USB 2.0 or 3 x USB 3.2 Gen2 + 1 x USB Type C

显示

1 x HDMI /DP++ (opt., MOQ may required)
1 x DP++ /VGA (opt., MOQ may required)
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)

音源

1 x Line-out

内部输入/输出

串行端口

2 x RS-232/422/485 (RS-232 w/ power) (2.0mm pitch)
4 x RS-232 (2.0mm pitch)

USB

4 x USB 2.0 (2.0mm pitch) or 3 x USB 2.0 (2.00mm pitch) + 1 x Vertical USB 2.0 (type A) (opt., MOQ required)

音效

1 x S/PDIF
1 x Line-out/Mic-in

SATA

2 x SATA 3.0 (up to 6Gb/s)

DIO

1 x 8-bit DIO

SMBus

1 x SMBus

监视定时器

看门狗定时器

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信赖平台模块

dTPM (default)
fTPM (option)

电源

类型

ASL171

Single 12VDC (+/-5%) (DC-In jack by default)

ASL173

Wide Range 9~36V (4P vertical type by default)

端口

DC-in Jack
Right Angle Connector (4-pin)
Vertical Type Connector (4-pin)

耗能

Idle: x7835RE 12W: 9V @ 0.82A (7.38W)
Max: x7835RE 12W: 9V @ 6.12A (55.08W)
Idle: x7835RE 12W: 36V @ 0.3A (10.8W)
Max: x7835RE 12W: 36V @ 1.52A (54.72W)

RTC 电池

CR2032 Coin Cell

支持操作系统

微软

Windows IoT Enterprise 10 LTSB
Windows 11

Linux

环境指标

温度

Operating: -40 to 85°C
Storage: -40 to 85°C

湿度

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

ASL171

ASL171-CT-x7211RE

ASL171

MTBF 472,343 hrs @ 25°C; 291,391 hrs @ 45°C; 192,586 hrs @ 60°C; 144,364 hrs @ 70°C; 93,242 hrs @ 85°C

ASL171

Calculation model: Telcordia Issue 4

ASL171

Environment: GB, GC – Ground Benign, Controlled

ASL173

ASL173-CT-x7835RE

ASL173

MTBF 455,085 hrs @ 25°C; 278,736 hrs @ 45°C; 183,740 hrs @ 60°C; 137,635 hrs @ 70°C; 88,893 hrs @ 85°C

ASL173

Calculation model: Telcordia Issue 4

ASL173

Environment: GB, GC – Ground Benign, Controlled

机械结构

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm

安规认证

认证

CE, FCC, RoHS

装箱单

1 ASL171/ASL173 motherboard
1 COM port cable (Length: 250mm, 1 x COM ports)
1 Serial ATA data & power cable w/lock (Length: 300mm)
1 Heat sink
