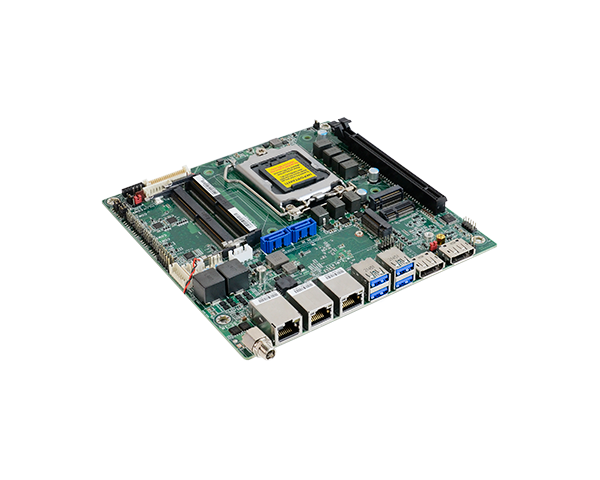

CMS101/CMS103

Übersicht

Home Industrie-Motherboards Mini-ITX CMS101/CMS103

10th Generation Intel® Core™ Processors

2 DDR4 2933MHz SODIMM up to 64GB

Multiple Displays: 2 DP++, 1 LVDS/eDP

Supports up to 4K/2K resolution

Multiple Expansions: 1 PCIe x16, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key

Rich I/O: 1 Intel 2.5GbE, 2 Intel GbE, 4 COM, 4 USB 2.0, W480/Q470: 4 USB 3.2 Gen2, H420: 4 USB 3.2 Gen1

15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Status : Eingeführt Jetzt kaufen (US)

+Vergleichen +Angebot

Produktvergleich
Sie haben 0 Artikel.bis zu 3 Produkte.
Jetzt vergleichen

Angebot
Sie haben 0 Artikel.bis zu 3 Produkte.
Jetzt Angebot machen

CMS101/CMS103 Verwandte Tags

#Windows 10#Edge AI Computing#CB Zertifizierungen#Windows 11#Intel#4K2K-Anzeige#PCIe x16#Windows#Linux#DP#Mehrfache Erweiterung#12V DC-in#DDR4#RoHS Zertifizierungen#UL Zertifizierungen#CE Zertifizierungen#FCC Zertifizierungen#10th Gen Intel® Comet Lake Processor#UKCA Zertifizierungen

System

Prozessor

CMS101/CMS103-W480E

10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket

CMS101/CMS103-W480E

Intel® Xeon W-1290TE Processor (Core 10; Max speed 4.5GHz; TDP 35W) (W480E only)

CMS101/CMS103-W480E

Intel® Xeon W-1270TE Processor (Core 8; Max speed 4.4GHz; TDP 35W) (W480E only)

CMS101/CMS103-W480E

Intel® Xeon W-1250TE Processor (Core 6; Max speed 3.8GHz; TDP 35W) (W480E only)

CMS101/CMS103-W480E

Intel® Core i9-10900E Processor (Core 10; Max speed 4.7GHz; TDP 65W)

CMS101/CMS103-W480E

Intel® Core i9-10900TE Processor (Core 10; Max speed 4.5GHz; TDP 35W)

CMS101/CMS103-W480E

Intel® Core i7-10700E Processor (Core 8; Max speed 4.5GHz; TDP 65W)

CMS101/CMS103-W480E

Intel® Core i7-10700TE Processor (Core 8; Max speed 4.4GHz; TDP 35W)

CMS101/CMS103-W480E

Intel® Core i5-10500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)

CMS101/CMS103-W480E

Intel® Core i5-10500TE Processor (Core 6; Max speed 3.7GHz; TDP 35W)

CMS101/CMS103-W480E

Intel® Core i3-10100E Processor (Core 4; Max speed 3.8GHz; TDP 65W)

CMS101/CMS103-W480E

Intel® Core i3-10100TE Processor (Core 4; Max speed 3.6GHz; TDP 35W)

CMS101/CMS103-W480E

Intel® Pentium G6400E Processor (Core 2; Max speed 3.8GHz; TDP 65W)

CMS101/CMS103-W480E

Intel® Pentium G6400TE Processor (Core 2; Max speed 3.2GHz; TDP 35W)

CMS101/CMS103-W480E

Intel® Celeron G5900E Processor (Core 2; Max speed 3.2GHz; TDP 65W)

CMS101/CMS103-W480E

Intel® Celeron G5900TE Processor (Core 2; Max speed 3.0GHz; TDP 35W)

CMS101/CMS103-Q470E

10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket

CMS101/CMS103-Q470E

Intel® Core i9-10900E Processor (Core 10; Max speed 4.7GHz; TDP 65W)

CMS101/CMS103-Q470E

Intel® Core i9-10900TE Processor (Core 10; Max speed 4.5GHz; TDP 35W)

CMS101/CMS103-Q470E

Intel® Core i7-10700E Processor (Core 8; Max speed 4.5GHz; TDP 65W)

CMS101/CMS103-Q470E

Intel® Core i7-10700TE Processor (Core 8; Max speed 4.4GHz; TDP 35W)

CMS101/CMS103-Q470E

Intel® Core i5-10500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)

CMS101/CMS103-Q470E

Intel® Core i5-10500TE Processor (Core 6; Max speed 3.7GHz; TDP 35W)

CMS101/CMS103-Q470E

Intel® Core i3-10100E Processor (Core 4; Max speed 3.8GHz; TDP 65W)

CMS101/CMS103-Q470E

Intel® Core i3-10100TE Processor (Core 4; Max speed 3.6GHz; TDP 35W)

CMS101/CMS103-Q470E

Intel® Pentium G6400E Processor (Core 2; Max speed 3.8GHz; TDP 65W)

CMS101/CMS103-Q470E

Intel® Pentium G6400TE Processor (Core 2; Max speed 3.2GHz; TDP 35W)

CMS101/CMS103-Q470E

Intel® Celeron G5900E Processor (Core 2; Max speed 3.2GHz; TDP 65W)

CMS101/CMS103-Q470E

Intel® Celeron G5900TE Processor (Core 2; Max speed 3.0GHz; TDP 35W)

CMS101/CMS103-H420E

10th Gen Intel® Xeon/Core™/Pentium/Celeron Processors, LGA 1200 Socket

CMS101/CMS103-H420E

Intel® Core i9-10900E Processor (Core 10; Max speed 4.7GHz; TDP 65W)

CMS101/CMS103-H420E

Intel® Core i9-10900TE Processor (Core 10; Max speed 4.5GHz; TDP 35W)

CMS101/CMS103-H420E

Intel® Core i7-10700E Processor (Core 8; Max speed 4.5GHz; TDP 65W)

CMS101/CMS103-H420E

Intel® Core i7-10700TE Processor (Core 8; Max speed 4.4GHz; TDP 35W)

CMS101/CMS103-H420E

Intel® Core i5-10500E Processor (Core 6; Max speed 4.2GHz; TDP 65W)

CMS101/CMS103-H420E

Intel® Core i5-10500TE Processor (Core 6; Max speed 3.7GHz; TDP 35W)

CMS101/CMS103-H420E

Intel® Core i3-10100E Processor (Core 4; Max speed 3.8GHz; TDP 65W)

CMS101/CMS103-H420E

Intel® Core i3-10100TE Processor (Core 4; Max speed 3.6GHz; TDP 35W)

CMS101/CMS103-H420E

Intel® Pentium G6400E Processor (Core 2; Max speed 3.8GHz; TDP 65W)

CMS101/CMS103-H420E

Intel® Pentium G6400TE Processor (Core 2; Max speed 3.2GHz; TDP 35W)

CMS101/CMS103-H420E

Intel® Celeron G5900E Processor (Core 2; Max speed 3.2GHz; TDP 65W)

CMS101/CMS103-H420E

Intel® Celeron G5900TE Processor (Core 2; Max speed 3.0GHz; TDP 35W)

Chipsatz

CMS101/CMS103-W480E

Intel® W480E Chipset

CMS101/CMS103-Q470E

Intel® Q470E Chipset

CMS101/CMS103-H420E

Intel® H420E Chipset

Speicher

Two 260-pin SODIMM up to 64GB
Dual Channel DDR4 2933MHz

BIOS

AMI SPI 256Mbit

Grafik

Controller

Intel® UHD Graphics 630 (only Pentium G5400/Celeron G4900 support 610 )

Merkmal

OpenGL 4.5, DirectX 12, OpenCL 2.1
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9

2 x DP++
1 x LVDS/eDP
DP++: Resolution up to 4096x2304 @60Hz
LVDS: resolution up to 1920x1200 @ 60Hz
eDP: resolution up to 4096x2160 @ 60Hz

Dreifachanzeige

DP++ + DP++ + LVDS/eDP

Erweiterung

Schnittstelle

CMS101/CMS103-W480E

1 x PCIe x16 (Gen 3) (Max. 75W)

CMS101/CMS103-W480E

1 x M.2 2230 E Key (USB/PCIe x1)

CMS101/CMS103-W480E

1 x M.2 2280 M Key (PCIe x4 Gen3/SATA)

CMS101/CMS103-W480E

1 x M.2 2242/3042/3052 B Key (PCIe x1 Gen3/USB 3.2 Gen2/USB 2.0/SATA)

CMS101/CMS103-Q470E

1 x PCIe x16 (Gen 3) (Max. 75W)

CMS101/CMS103-Q470E

1 x M.2 2230 E Key (USB/PCIe x1)

CMS101/CMS103-Q470E

1 x M.2 2280 M Key (PCIe x4 Gen3/SATA)

CMS101/CMS103-Q470E

1 x M.2 2242/3042/3052 B Key (PCIe x1 Gen3/USB 3.2 Gen2/USB 2.0/SATA)

CMS101/CMS103-H420E

1 x PCIe x16 (Gen 3) (Max. 75W)

CMS101/CMS103-H420E

1 x M.2 2230 E Key (USB/PCIe x1)

CMS101/CMS103-H420E

1 x M.2 2280 M Key (PCIe x1 Gen3)

CMS101/CMS103-H420E

1 x M.2 2242/3042/3052 B Key (PCIe x1 Gen3/USB 3.2 Gen1/USB 2.0)

Audio

Audiocodec

Realtek ALC888/887

Ethernet

Controller

1 x Intel® I225LM PCIe(10/100/1000/2.5G speeds)
1 x Intel® I219LM PHY(10/100/1000 speeds), support vPro/AMT
1 x Intel® I210AT PCIe(10/100/1000 speeds)

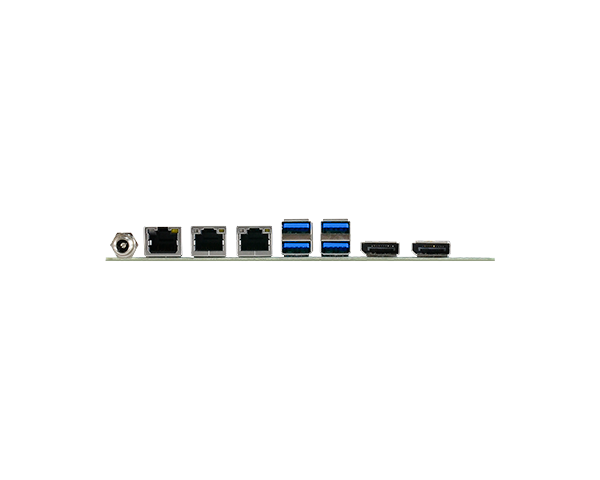

I/O Rückseite

Ethernet

1 x 2.5GbE (RJ-45)
2 x GbE (RJ-45)

USB

CMS101/CMS103-W480E

4 x USB 3.2 Gen2 (dual type-A connector)

CMS101/CMS103-Q470E

4 x USB 3.2 Gen2 (dual type-A connector)

CMS101/CMS103-H420E

4 x USB 3.2 Gen1 (dual type-A connector)

2 x DP++

I/O Innenseite

Seriell

2 x RS-232/422/485 (2.0mm pitch)
2 x RS-232 (2.0mm pitch)

USB

4 x USB 2.0 (2.0mm pitch)

1 x LVDS header
1 x eDP connector

Audio

1 x Front Audio (2.0mm pitch)

SATA

CMS101/CMS103-W480E

2 x SATA 3.0 (up to 6Gb/s)

CMS101/CMS103-W480E

1 x SATA Power

CMS101/CMS103-W480E

RAID 0/1/5/10 (w/ M.2 M/B Key + 2 SATA Conn., W480E/Q470E only)

CMS101/CMS103-Q470E

2 x SATA 3.0 (up to 6Gb/s)

CMS101/CMS103-Q470E

1 x SATA Power

CMS101/CMS103-Q470E

RAID 0/1/5/10 (w/ M.2 M/B Key + 2 SATA Conn., W480E/Q470E only)

CMS101/CMS103-H420E

2 x SATA 3.0 (up to 6Gb/s)

CMS101/CMS103-H420E

1 x SATA Power

DIO

1 x 8-bit DIO
1 x DIO Power

LPC

1 x LPC

SMBus

1 x SMBus

Watchdog

Ausgabe und Intervall

System Reset, Programmable via Software from 1 to 255 Seconds

Sicherheit

TPM

fTPM (default)
dTPM2.0 (opt.)

Leistung

Typ

CMS101: Single 12V +/-10% DC
CMS103: Wide Range 15~36V

Anschluss

DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straight Type Connector (4-pin) (available upon request)

Verbrauch

Idle: i9-10900E 65W: 20V@ 0.82A (16.4W)
Max: i9-10900E 65W: 20V@ 9.02A (180.4W)

RTC-Batterie

CR2032 Coin Cell

Betriebssystemunterstützung

Microsoft

Windows 10 IoT Enterprise 64-bit
Windows 11 GAC

Linux

Umgebung

Temperatur

Operating: -5 to 65°C
Storage: -40 to 85°C

Feuchtigkeit

Operating: 5 to 90% RH
Storage: 5 to 90% RH

Mittlere Betriebsdauer zwischen Ausfällen

CMS103-W480IB 554,497 hrs @ 25°C; 325,039 hrs @ 45°C; 208,771 hrs @ 60°C;
Calculation model: Telcordia Issue 4
Environment: GB, GC – Ground Benign, Controlled

Mechanismus

Abmessungen

Mini-ITX Form Factor , 170mm (6.7") x 170mm (6.7")

Höhe

PCB: 1.6mm
Top side: 16.3mm
Bottom side: 4.4mm

Standards und Zertifizierungen

Zertifizierungen

CE, FCC, RoHS, UKCA, UL, CB

Packliste

1 CMS101/CMS103 motherboard
1 Serial ATA data & power cable w/lock (Length: 300mm) A81-002101-016G
1 COM port cable (Length: 250mm, 1 x COM port) A81-015011-001G
1 I/O shield w/ icon A49-CMS101-010G

Country of Origin

Taiwan
