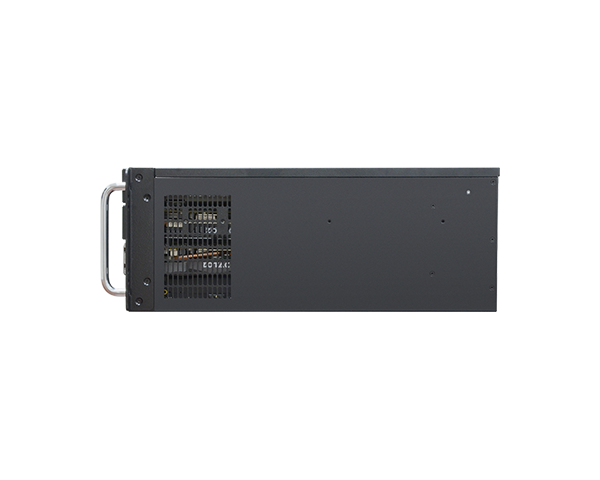

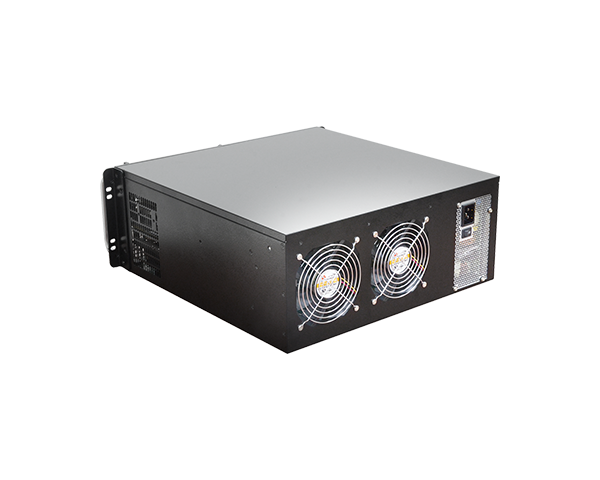

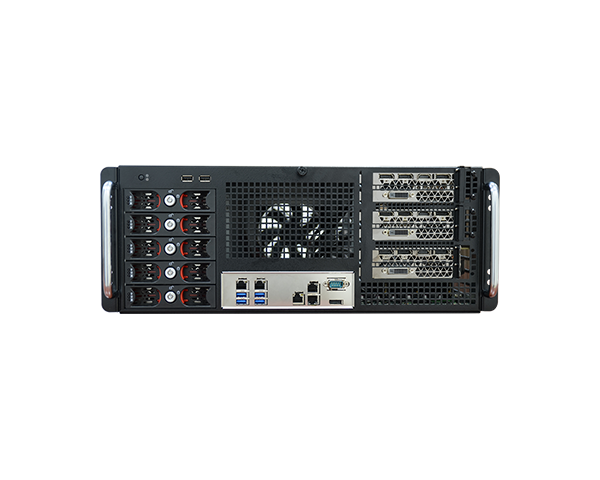

RM646-ERX810｜Intel®｜Industriecomputer｜DFI

5th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket:
Intel® Xeon® Gold 6548Y+ Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W
Intel® Xeon® Gold 6548N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 250W
Intel® Xeon® Gold 6538N Processor (32 Cores, 60 MB Cache, up to 4.1 GHz); 205W
Intel® Xeon® Gold 6530 Processor (32 Cores, 160 MB Cache, up to 4 GHz); 270W
Intel® Xeon® Gold 6526Y Processor (16 Cores, 37.5 MB Cache, up to 3.9 GHz); 195W
Intel® Xeon® Gold 5520+ Processor (28 Cores, 52.5 MB Cache, up to 4 GHz); 205W
Intel® Xeon® Gold 5515+ Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 165W
Intel® Xeon® Silver 4516Y+ Processor (24 Cores, 45 MB Cache, up to 3.7 GHz); 185W
Intel® Xeon® Silver 4514Y Processor (16 Cores, 30 MB Cache, up to 3.4 GHz); 150W
Intel® Xeon® Silver 4510 Processor (12 Cores, 30 MB Cache, up to 4.1 GHz); 150W
Intel® Xeon® Silver 4510T Processor (12 Cores, 30 MB Cache, up to 3.7 GHz); 115W
Intel® Xeon® Silver 4509Y Processor (8 Cores, 22.5 MB Cache, up to 4.1 GHz); 125W

4th Generation Intel® Xeon® Scalable Processor Family, LGA 4677 Socket:
Intel® Xeon® Gold 6448Y Processor (32 Cores, 60 MB Cache, up to 4.10 GHz); 225W
Intel® Xeon® Gold 6438N Processor (32 Cores, 60 MB Cache, up to 3.60 GHz); 205W
Intel® Xeon® Gold 6430 Processor (32 Cores, 60 MB Cache, up to 3.40 GHz); 270W
Intel® Xeon® Gold 6428N Processor (32 Cores, 60 MB Cache, up to 3.80 GHz); 185W
Intel® Xeon® Gold 6426Y Processor (16 Cores, 37.5 MB Cache, up to 4.10 GHz); 185W
Intel® Xeon® Gold 6418H Processor (24 Cores, 60 MB Cache, up to 4.00 GHz); 185W
Intel® Xeon® Gold 5420+ Processor (28 Cores, 52.5 MB Cache, up to 4.10 GHz); 205W
Intel® Xeon® Gold 5418N Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 165W
Intel® Xeon® Gold 5418Y Processor (24 Cores, 45 MB Cache, up to 3.80 GHz); 185W
Intel® Xeon® Gold 5415+ Processor (8 Cores, 22.5 MB Cache, up to 4.10 GHz); 150W
Intel® Xeon® Silver 4416+ Processor (20 Cores, 37.5 MB Cache, up to 3.90 GHz); 165W
Intel® Xeon® Silver 4410T Processor (10 Cores, 26.25 MB Cache, up to 4.00 GHz); 150W
Intel® Xeon® Silver 4410Y Processor (12 Cores, 30 MB Cache, up to 3.90 GHz); 150W

Intel® C741 Chipset

16 x ECC-RDIMM up to 1024GB
DDR5 Max. 5600MHz

Insyde

BMC AST2600

1 x DP

4 SATA 3.0 (RAID 0/1/5/10)

1 M.2 2280 M key

4 x PCIe x16 (Gen 5)
2 x PCIe x8 (Gen5)

ALC888S

4 x Intel® I210
IPMI: RTL8211F

4 x GbE
1 x Dedicated IPMI LAN

1 x RS-232/422/485 (DB-9)

4 x USB 3.2 Gen1

1 x DP

1 x Power LED
1 x HDD LED

1 x Power Button

12 CM Fan x 2

TPM 2.0

ATX PS/2 or Mini Redundant PSU

0 to 40°C

-30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery

5 to 90% RH (non-condensing)

Heavy Industrial Steel

Flexible hold down bar

431.8 x 175.6 x 449.8mm

TBD

Black

Operating: 3G
Non-operating: 5G

Operating: random 5~500Hz 1G
Non-operating: sweep sine 10~500Hz 1.5G

ISTA Project 1A

TBD

• 1 RM646-ERX810 System Unit

Taiwan
