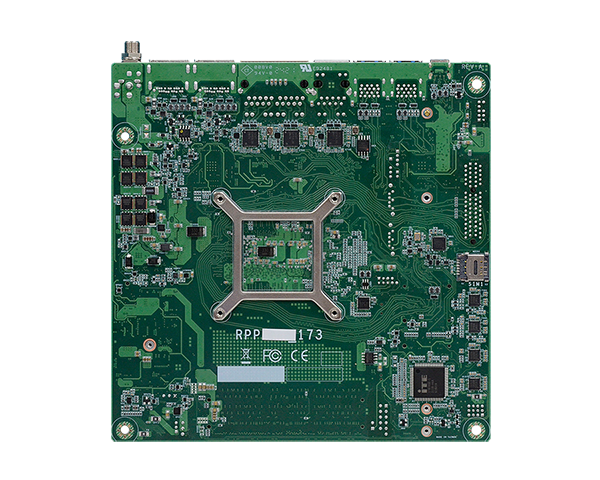

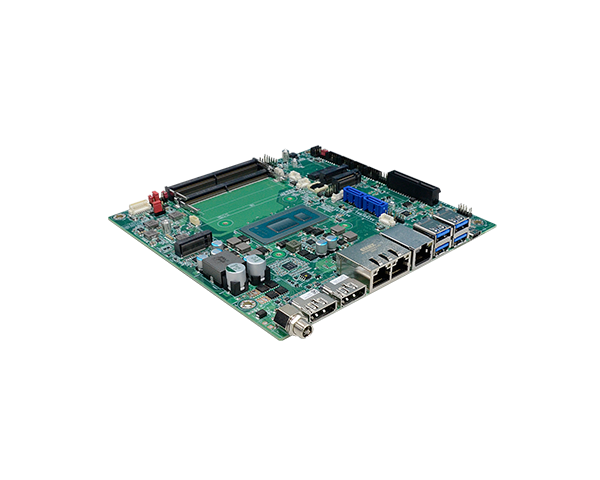

RPP171/RPP173

產品概要

首頁工業級主機板 Mini-ITX RPP171/RPP173

13th Gen Intel® Core Processors

2 DDR5 SODIMM up to 64GB

Quad Displays: 2 DP/HDMI + 1 USB Type C + 1 M2A Display (eDP/LVDS/VGA/HDMI/DP)

Supports 4K resolution

Multiple Expansion: 1 PCIe x4, 1 M.2 M key, 1 M.2 B key, 1 M.2 E Key, 1 M.2 A Key

Rich I/O: Up to 3 Intel 2.5GbE, 4 USB 3.2 Gen2, 1 USB Type C and 4 USB 2.0 headers

狀態 : 樣品提供前往詢價

+加入比較表 +加入詢價表

產品比較
目前共有 0 樣產品可同時比較三款產品
前往比較

加入詢價表
目前共有 0 樣產品可同時詢價三款產品
前往詢價

RPP171/RPP173 相關標籤

#DDR5 記憶體#13th Gen Intel® Core™ 處理器#Windows 10#9~36V DC-in#Edge AI Computing#Windows 11#Intel#4K2K高解析#HDMI#DP#多元擴充插槽#RoHS認證#CE認證#FCC認證#2.5Gb乙太網路#UKCA 認證

系統

處理器

13th Generation Intel® Core™ Processors
Intel® Core™ i7-1365UE (10 Cores, 12M Cache, up to 4.9 GHz); 15~28W
Intel® Core™ i5-1345UE (10 Cores, 12M Cache, up to 4.6 GHz); 15~28W
Intel® Core™ i3-1315UE (6 Cores, 10M Cache, up to 4.5 GHz); 15~28W
Intel® Processor U300E (Formerly Pentium) (5 Cores, 24M Cache, up to 4.3 GHz); 15~28W

記憶體

2x 262-pin SODIMM up to 64GB
Dual Channel DDR5 5200MHz

BIOS

AMI SPI 256Mbit

顯示

控制器

Intel® Iris® Xe Graphics for i7/i5 CPU
Intel® UHD Graphics for i3 CPU

特性

OpenGL 4.6, DirectX 12.1, OpenCL 3.0, OpenGL 4.6
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9
HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9

顯示器

2 x HDMI/DP Combo (Auto detect)
HDMI: resolution up to 4096x2160 @30Hz
DP: resolution up to 4096x2304 @60Hz
USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W): resolution up to 4096x2304 @60Hz (HBR2)

四重顯示

HDMI + DP + USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W) + M2A-Display (optional)

擴充

介面

1 x PCIe Gen 4 x4
1 x M.2 2242/2280 M Key (PCIE Gen4x4, support NVMe )
1 x M.2 2242/3042/3052 B Key (PCIE Gen3x1, USB3.2 Gen2, USB2.0, selected by BIOS)
1 x M.2 2230 E Key (PCIE Gen3x1 and USB2.0, support Intel® CNVi)
1 x M.2 3042 A Key support DFI M2A-display module (opt. MOQ required)

音訊

音訊編解碼器

Realtek ALC888S

乙太網路

控制器

LAN1/2: i226V/IT (10/100/1000/2.5G speeds)
LAN3(vPro): i226LM/IT (10/100/1000/2.5G speeds)

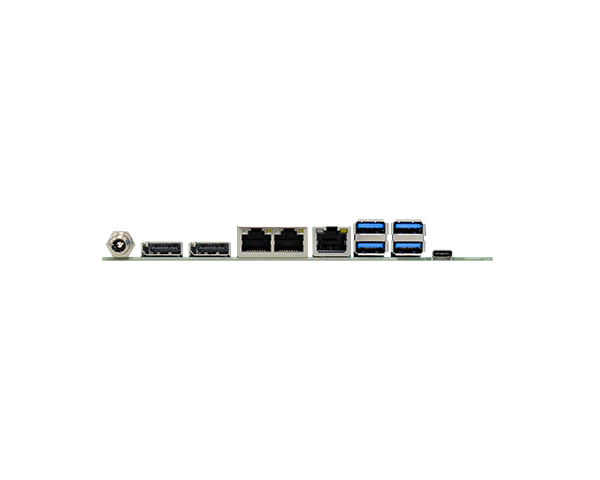

背板輸入/輸出

乙太網路

Up to 3 x 2.5GHz RJ45 (LAN 3 colayout with internal vertical RJ45 by option)

USB

4 x USB 3.2 Gen2
1 x USB Type C (DP alt-mode/USB3.2 Gen2/PD 15W)

顯示

2 x DP/HDMI combo (Auto detect)

內部輸入/輸出

串口

2 x RS-232/422/485 (2.0mm pitch)
1 x RS-232 with power (2.0mm pitch)
1 x RS-232 (2.0mm pitch) colay with DIO-4bit (JP1)

USB

4 x USB 2.0 (2.0mm pitch)

顯示

1 x M.2 A key, support M2A-Display (eDP/LVDS/VGA/HDMI/DP) by optional

音源

1 x Line-out/Mic-in

SATA

2 x SATA 3.0

DIO

1 x 8-bit DIO

SMBus

1 x SMBus

監視計時器

輸出與時間間隔

System Reset, Programmable via Software from 1 to 255 Seconds

安全性

信賴平臺模組

dTPM (default)
fTPM (option)

電源

類型

RPP171

Single 12VDC

RPP173

Wide Range 9~36VDC

連接埠

DC-in Jack
Right Angle Connector (4-pin) (available upon request)
Straightl Type Connector (4-pin) (available upon request)

耗能

Idle: RPP171-IE-1370PRE 28W: 12V@ 0.81A (9.72W)
Max: RPP171-IE-1370PRE 28W: 12V@ 8.83A (105.96W)
Idle: RPP171-IE-1365UE 15W: 12V@ 0.75 (9W)
Max: RPP171-IE-1365UE 15W: 12V@ 8.83 (99.96W)

RTC 電池

CR2032 Coin Cell

支援作業系統

微軟

Windows IoT Enterprise 10 LTSB
Windows 11

Linux

環境指標

溫度

Operating: -5 to 65°C, -20 to 70°C
Storage: -40 to 85°C

濕度

Operating: 5 to 95% RH
Storage: 5 to 95% RH

MTBF

RPP173-IE-1365UE 442,970 hrs @ 25°C; 271,011 hrs @ 45°C; 160, 178,357 @ 60°; 133,264 hrs @ 70°C;
Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled

機械結構

尺寸

Mini-ITX Form Factor
170mm (6.7") x 170mm (6.7")

高度

PCB: 1.6mm
Top Side: 20mm
Bottom Side: 3mm

安規認證

認證

CE, FCC, RoHS, UKCA

裝箱單

· 1 RPP171/RPP173 motherboard
· 1 COM port cable with bracket (Length: 250mm, 1 x COM ports), A81-015115-018G
· 1 Serial ATA data with power cable (Length: 300mm), A81-002144-018G
· 4 M.2 screw/standoff

· 1 I/O Shield
- (2 LAN, Regular type)(For Sample), A49-RPP171-010G
- (3 LAN, Regular type)(For Sample), A49-RPP171-000G
- (2 LAN, Thin type)(For Sample), A49-RPP171-100G
- (3 LAN, Thin type)(For Sample), A49-RPP171-110G

· 1 Cooler/Heat sink
- (Wide/Normal Temp. -Cooler for 28W), A71-108160-010G (Default)
- (Wide Temp. Fanless HS for 15W), A71-008184-010G (By request)
- (Normal Temp. Fanless HS for 15W), A71-008184-000G (By request)

Country of Origin

台灣

訂購資訊

型號料號描述
型號 :
RPP171-IE-1365UE 料號 :
770-RPP1711-000G 描述 :
RPP171-IE-1365UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Wide Temp -20 to 70°C
型號 :
RPP171-IE-1345UE 料號 :
770-RPP1711-100G 描述 :
RPP171-IE-1345UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Wide Temp -20 to 70°C
型號 :
RPP171-IB-1315UE 料號 :
770-RPP1711-200G 描述 :
RPP171-IE-1315UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, -5 to 65°C
型號 :
RPP171-IB-U300E 料號 :
770-RPP1711-300G 描述 :
RPP171-IB-U300, 2 DDR5, Rear I/O( 2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, -5 to 65°C
型號 :
RPP173-IE-1365UE 料號 :
770-RPP1731-000G 描述 :
RPP173-IE-1365UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Wide Temp -20 to 70°C
型號 :
RPP173-IE-1345UE 料號 :
770-RPP1731-100G 描述 :
RPP173-IE-1345UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, Wide Temp -20 to 70°C
型號 :
RPP173-IB-1315UE 料號 :
770-RPP1731-200G 描述 :
RPP173-IE-1315UE, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, -5 to 65°C
型號 :
RPP173-IB-U300E 料號 :
770-RPP1731-300G 描述 :
RPP173-IB-U300, 2 DDR5, Rear I/O(2 DP/HDMI combo, 3 LAN, 4 USB 3.2 Gen2, 1 USB Type C), Internal I/O (M.2 M/B/E/A Key, 4 USB 2.0, w/TPM), DC-Jack, -5 to 65°C

選購品

品名料號描述
品名 :
SATA Cable 料號 :
A81-002144-018G 描述 :
SATA 7+15P to SATA 7P, Length: 300mm
品名 :
COM Port Cable 料號 :
A81-015115-018G 描述 :
COM Port D-Sub 9P Cable, Length: 250mm
品名 :
USB 2.0 cable 料號 :
A81-001083-016G 描述 :
2-port USB2.0 w/bracket, Length: 300mm
品名 :
Audio cable 料號 :
A81-022036-016G 描述 :
Line-out/Mic-in, Length: 110m
品名 :
Front Panel cable 料號 :
A81-009615-016G 描述 :
Length: 270mm
