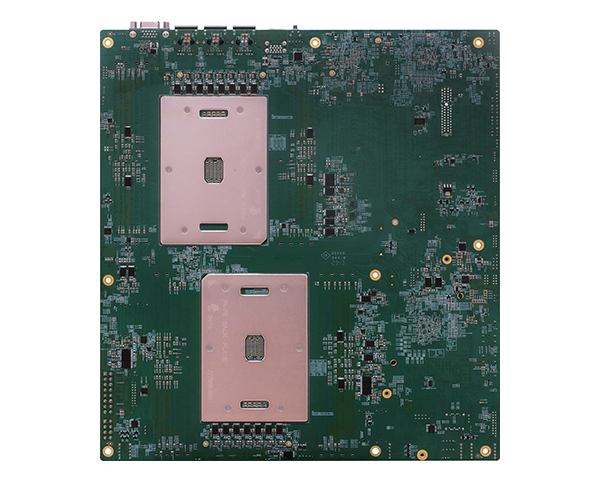

IS-5222｜Intel®｜工業級主機板｜友通資訊 DFI

3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+)
Intel® Xeon® Gold 6338N ( 32 Cores, 48 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 6338T ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6336Y ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 6330 ( 28 Cores, 42 MB Cache, up to 3.10 GHz )
Intel® Xeon® Gold 6330N ( 28 Cores, 42 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6326 ( 16 Cores, 24 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 6314U ( 32 Cores, 48 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 6312U ( 24 Cores, 36 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 5320T ( 20 Cores, 30 MB Cache, up to 3.50 GHz )
Intel® Xeon® Gold 5318N ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 5318Y ( 24 Cores, 36 MB Cache, up to 3.40 GHz )
Intel® Xeon® Gold 5317 ( 12 Cores, 18 MB Cache, up to 3.60 GHz )
Intel® Xeon® Gold 5315Y ( 8 Cores, 12 MB Cache, up to 3.60 GHz )
Intel® Xeon® Silver 4316 ( 20 Cores, 30 MB Cache, up to 3.40 GHz )
Intel® Xeon® Silver 4314 ( 16 Cores, 24 MB Cache, up to 3.40 GHz )
Intel® Xeon® Silver 4310 ( 12 Cores, 18 MB Cache, up to 3.30 GHz )
Intel® Xeon® Silver 4310T ( 10 Cores, 15 MB Cache, up to 3.40 GHz )

Intel® C621A Chipset

16 x 288-pin ECC-RDIMM up to 1024GB
Single Channel DDR4 up to 3200 MHZ

AMI 64Mb SPI BIOS

BMC AST2500

1 x VGA
VGA: resolution up to 1920x1200 @ 60Hz

VGA

1 x M.2 2280 M key (PCIe Gen3 x1 NVMe)
3 x PCIe x16 Gen4 slot
2 x PCIe x8 Gen4 slot

2 x 10GbE (RJ-45)
1 x Dedicated IPMI LAN

2 x USB 3.1 Gen1 (USB 3.1 stack)

1 x VGA (DB-15)

2 x RS-232 (2x5-pin)

2 x USB 3.1 Gen1
4 x USB 2.0

2 x SATA 3.0 (up to 6Gb/s)
RAID 0/1

System Reset, Programmable via Software from 1 to 255 Seconds

ATX

8-pin ATX 12V CPU power
24-pin ATX power

CR2032 Coin Cell

Windows 10 IoT Enterprise LTSB RS5(64-bit)

Operating: 0 to 40°C
Storage: -40 to 85°C

Operating: 5 to 90% RH, Non-condensing
Storage: 5 to 90% RH, Non-condensing

TBD

EATX Form Factor
305mm (12") x 330mm (13")

PCB: 1.6mm

CE, FCC
