EC531-KH/EC532-KH

Overview

Home Industrial Computers Embedded Fanless PC EC531-KH/EC532-KH

Supports DDR4 SODIMM up to 32GB

Three independent displays: 1 VGA + 1 DVI/HDMI + 1 HDMI/DP

Rugged and Fanless Embedded System

Rich I/O connectivity: 2 GbE, 8 COM, 8 USB 3.0, 2 USB 2.0, 1 M.2 NVMe slots

3 expension slots: PCIe + PCI

15-Year CPU Life Cycle Support Until Q1' 32 (Based on Intel IOTG Roadmap)

Status : Launched BUY ONLINE (US)

+Compare +Quotation

Product Comparison
You have 0 items. up to 3 products.
COMPARE NOW

Quotation
You have 0 items. up to 3 products.
QUOTE NOW

EC531-KH/EC532-KH Embedded Solution Powered by: DFI Proprietary Motherboard

EC531-KH/EC532-KH Related Tags

#IoT#Intel#Mini PCIe#Fanless Design#PCIe x16#Windows#Linux#HDMI#DVI-D#VGA#DP#Multiple Expansion#DDR4#CE Certification#FCC Certification#Azure Certification#Material Handling#SCARA#Legacy ISA/PCI Expansion Port

System

Processor

7th Generation Intel® Core™ Processors, BGA 1440
Intel® Xeon® Processor E3-1535M v6, Quad Core, 8M Cache, 3.1GHz (4.2GHz), 45W
Intel® Core™ i7-7820EQ Processor, Quad Core, 8M Cache, 3.0GHz (3.7GHz), 45W
Intel® Core™ i5-7440EQ Processor, Quad Core, 6M Cache, 2.9GHz (3.6GHz), 45W
Intel® Core™ i5-7442EQ Processor, Quad Core, 6M Cache, 2.1GHz (2.9GHz), 25W
Intel® Core™ i3-7100E Processor, Dual Core, 3M Cache, 2.9GHz, 35W
Intel® Core™ i3-7102E Processor, Dual Core, 3M Cache, 2.1GHz, 25W

Chipset

Intel® CM238 Chipset
Intel® QM175 Chipset

Memory

Two 260-pin SODIMM up to 32GB (CM238 supports ECC)
Dual Channel DDR4 2400MHz

BIOS

Insyde SPI 128Mbit

Graphics

Controller

Intel® HD Graphics

Feature

OpenGL up to 5.0, DirectX 11, OpenCL 2.1
HW Decode: HEVC/H.265, H.264, M/JPEG, MPEG2, VC1/WMV9, VP8 (8-bit), VP9 (10-bit)
HW Encode: HEVC/H.265, M/JPEG, MPEG2, VP8

Display

1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP
VGA: resolution up to 1920x1200 @ 60Hz
DVI: resolution up to 1920x1200 @ 60Hz
HDMI: resolution up to 4096x2160 @ 24Hz
DP: resolution up to 4096x2304 @ 60Hz

Triple Displays

VGA + HDMI/DVI (DVI-D signal) + HDMI/DP

Storage

Internal

2 x 2.5" SATA 3.0 Drive Bay
support RAID 0/1

Expansion

Interface

1 x PCIe x16 + 2 x PCI (EC531-KH only) or 2 x PCIe x16 (1 x 1 and 1 x 8 signal) + 1 x PCI (EC532-KH only)
1 x M.2 2280 M key (PCIe x4 NVMe, Intel optane memory support)
1 x Full-size Mini PCIe with micro SIM socket (PCIe/USB)
1 x Full/Half-size Mini PCIe with micro SIM socket (USB)

Ethernet

Controller

1 x Intel® I211IT PCIe (10/100/1000Mbps)
1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps) (only Core i7/i5 supports iAMT)

LED

Indicators

1 x Power LED
1 x HDD LED

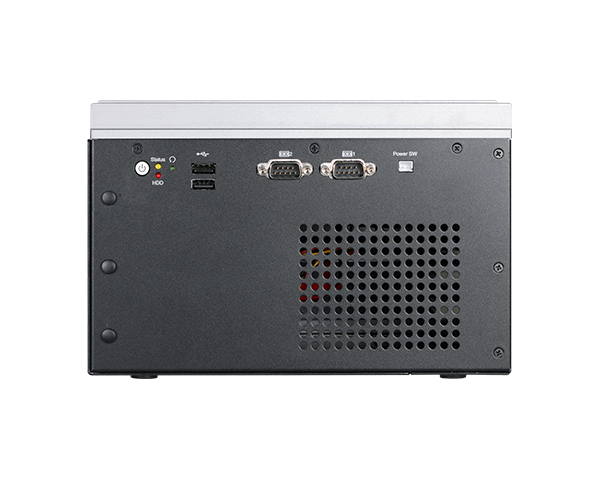

Front I/O

Serial

2 x RS-232/422/485 (DB-9) (RS-232 with power)

USB

2 x USB 2.0 (type A)

Buttons

1 x Power Button
1 x Reset Button

Wi-Fi Antenna

3 x Antenna Hole

Rear I/O

Ethernet

2 x GbE (RJ-45)

Serial

6 x RS-232/422/485 (DB-9)

USB

8 x USB 3.0 (type A)

Display

1 x VGA
1 x HDMI/DVI (DVI-D signal) (DVI available upon request)
1 x HDMI/DP

Audio

1 x Line-out
1 x Mic-in (available upon request)

Watchdog Timer

Output & Interval

System Reset, Programmable via Software from 1 to 255 Seconds

Security

TPM

TPM 2.0 (optional)

Power

Type

Wide Range 9~36V

Connector

3-pole Terminal Block
2-pin Power Extension Switch Connector

OS Support

Windows 10 IoT Enterprise 64 Bit
Linux (available upon request)

Environment

Operating Temperature

0 to 50°C (HDD)
-20 to 60°C (SSD)
-40 to 70°C (optional)

Storage Temperature

-20 to 85°C

Relative Humidity

5 to 95% RH (non-condensing)

Mechanism

Construction

Metal + Aluminum

Mounting

Wall Mount

Dimensions (W x H x D)

235 x 153.8 x 222.1mm

Weight

4.8kg

Standards and Certifications

Shock

Half sine wave 3G, 11ms, 3 shock per axis

Vibration

IEC68-2-64

Certifications

CE, FCC Class A, Microsoft Azure

Packing List

1 EC531/532-KH system unit
1 Extend power switch cable
1 terminal block 3pole for DC input
1 cable with 2 wire stripped and tinned to DC jack

Country of Origin

Taiwan

Ordering Information

Model Name Part Number Description
Model Name :
EC530-KH, EC531-KH Part Number :
750-EC5312-000G Description :
EC531-KH Fanless, KH263-CM238, E3-1535M v6, 4 COM, 16 DIO, 8 USB, 6 LAN, 1 PCI, 2 PCIe, DC 9~36V input, F/G SYSTEM RoHS
Model Name :
EC530-KH, EC531-KH Part Number :
750-EC5312-100G Description :
EC531-KH Fanless, KH263-QM175, I5-7440EQ, 8 COM, 16 DIO, 10 USB, 2 LAN, 2 PCI, 1 PCIe, DC 9~36V input, F/G SYSTEM RoHS

Optional Items

Item Name Part Number Description
Item Name :
M.2 SSD Part Number :
785-M2PCIE032G
785-M2PCIE064G
785-M2PCIE128G
785-M2PCIE256G Description :
32GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
64GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
128GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
256GB, M.2 2280 SSD, PCIE x4, M Key, TLC, RoHS
Item Name :
2.5" SSD Part Number :
785-S25032G
785-S25064G
785-S25128G
785-S25256G
785-S25512G Description :
32GB, 2.5" SSD, SATA3, MLC, RoHS
64GB, 2.5" SSD, SATA3, MLC, RoHS
128GB, 2.5" SSD, SATA3, MLC, RoHS
256GB, 2.5" SSD, SATA3, MLC, RoHS
512GB, 2.5" SSD, SATA3, MLC, RoHS
Item Name :
Wi-Fi/BT Kit Part Number :
612-WPEQ26-000G Description :
MINI-CARD 802.11ac/a/b/g/n+BT, 2T2R, WPEQ-261ACN(BT), SPARKLAN
Item Name :
Power Cord Part Number :
785-PWRD Description :
Power Cord, Standards (USA/EUR/CH/UK), 1.8m, RoHS
Item Name :
Power Adapter Part Number :
671-110002-100G
671-110003-100G
671-112005-100G
671-116003-000G Description :
100W, 12V, Level 6, RoHS
120W, 19V, Level 6, RoHS
120W, 24V, Level 6, Wide Temp, RoHS
160W, 19V, Level 6, RoHS
Item Name :
Wall Mount Part Number :
761-EC5410-000G Description :
Wall Mount Kit, RoHS
Item Name :
SO-DIMM Part Number :
138-540002-106G
138-580004-102G
138-5G0163-102G
138-580004-104G
138-5G0163-103G
138-540002-107G
138-580004-103G
785-RSOD44G
785-RSOD48G
785-RSOD416G
785-RSOD432G Description :
4GB DDR4 2666Mhz SO-DIMM 1Rx8 512Mx8 CL19 1.2V
8GB DDR4 2666Mhz SO-DIMM 1Rx8 1Gx8 CL19 1.2V
16GB DDR4 2666Mhz SO-DIMM 2Rx8 1Gx8 CL19 1.2V
8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V, wide temp.
16GB DDR4 2666Mhz SO-DIMM 2Rx8 IND 1Gx8 CL19 1.2V, wide temp.
4GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 512Mx8 CL19 1.2V
8GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 1Gx8 CL19 1.2V
SODIMM, DDR4 Module, 4GB, RoHS
SODIMM, DDR4 Module, 8GB, RoHS
SODIMM, DDR4 Module, 16GB, RoHS
SODIMM, DDR4 Module, 32GB, RoHS
