Home Industrial Motherboards 3.5" SBC ASL553

Intel® Atom® Amston Lake Processors 3.5" SBC

1 DDR5 SO-DIMM

4K High Resolution: Supports 4K/ 2K resolution

Triple Display: 1 HDMI, 1 Type-C DP Alt. Mode, 1 LVDS/eDP(Opt.)

Rich I/O Connectivity: 3 2.5GbE LAN, 4 USB 3.2, 2 USB 2.0, 1 SATA

Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key

Supports wide temperature up to -40 to 85°C

Status : Preliminary QUOTE NOW

+Compare +Quotation

Product Comparison
You have 0 items. up to 3 products.
COMPARE NOW

Quotation
You have 0 items. up to 3 products.
QUOTE NOW

System

Processor

Intel® Atom® Amston Lake Processors, TDP up to 12W
Intel® Atom x7000RE series processors (Code Name : Amston Lake)
Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W
Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W
Intel® Atom Processor x7213RE, 2 Cores, 2.0~3.4GHz, 9W
Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W

Memory

One 262-pin SODIMM up to 16GB
Single Channel DDR5 4800MHz

BIOS

AMI SPI 256Mbit

Graphics

Controller

Intel® UHD Graphics

Feature

OpenGL 4.6, Direct X 12.1, OpenCL 3.0
HW Decode: HEVC, VP9, AV1, AVC
HW Encode: HEVC, VP9, AVC

Display

1 x HDMI
1 x Type-C DP Alt. Mode
1 x LVDS/eDP(Opt.)

HDMI: resolution up to 4096x2160 @24Hz
DP: resolution up to 3840x2160 @60Hz
LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz
eDP: resolution up to 4096x2160 @60Hz

Triple Displays

HDMI + Type-C DP Alt. Mode + LVDS/eDP(Opt.)

Expansion

Interface

1 x M.2 M key 2280/2242 (PCIe Gen3 x1/SATA3.0)
1 x M.2 B key 3052/3042 (USB3.0/USB2.0, optional PCIe x1), 1 x SIM slot for 4G/5G
1 x M.2 E key 2230 (USB/PCIe x1, support CNVi)

Audio

Audio Codec

Realtek ALC888S

Ethernet

Controller

3 x Intel® I226IT (10/100/1000/2500Mbps). LAN3 option with M.2 3052 PCIe x1.

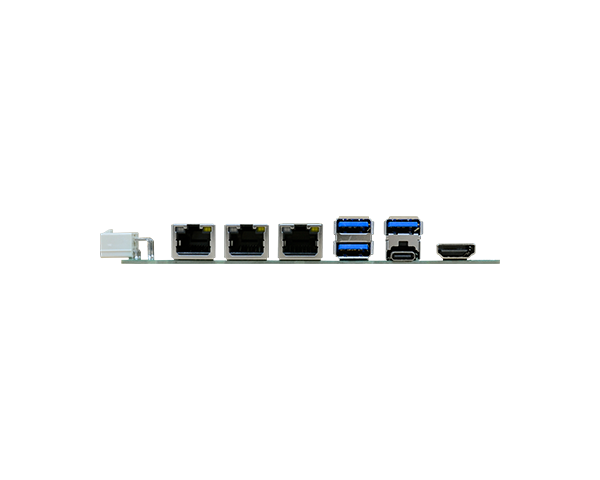

Rear I/O

Ethernet

3 x 2.5GbE (RJ-45)

USB

4 x USB 3.2

Display

1 x HDMI
1 x Type-C DP Alt. Mode
1 x LVDS/eDP(Opt.)

Internal I/O

Serial

1 x RS-232/422/485 (2.0mm pitch)

USB

2 x USB 2.0 (2.0mm pitch)

Display

1 x LVDS LCD Panel Connector
1 x LCD/Inverter Power

Audio

1 x Audio (Line-out/Mic-in)

SATA

1 x SATA 3.0 (up to 6Gb/s)
1 x SATA Power

DIO

1 x 8-bit DIO

Watchdog Timer

Output & Interval

System Reset, Programmable via Software from 1 to 255 Seconds

Security

TPM

dTPM2.0

Power

Type

Wide Range 9~36V DC

Connector

Right Angle Connector (4-pin)
DC-in Jack (available upon request)
Vertical Type Connector (4-pin) (available upon request)

Consumption

Typical: i3-N305, 19V @ 0.45A (8.55W) Max: i3-N305, 19V @ 2.7A (51.3W)

RTC Battery

CR2032 Coin Cell

OS Support

OS Support (UEFI Only)

Windows 10 IoT Enterprise (64-bit)
Windows 11
Linux

Environment

Temperature

Operating: -40 to 85°C
Storage: -40 to 85°C

Humidity

Operating: 5 to 90% RH
Storage: 5 to 90% RH

MTBF

564,691 hrs @ 25°C; 372,535 hrs @ 45°C; 255,827 hrs @ 60°C; 195,225 hrs @ 70°C; 128,074 hrs @ 85°C
Calculation Model: Telcordia Issue 4
Environment: GB, GC - Ground Benign, Controlled

Mechanism

Dimensions

3.5" SBC Form Factor
146mm (5.75") x 102mm (4.02")

Height

PCB: 1.6mm
Top Side: 15.0mm
Bottom Side: 4.0mm

Standards and Certifications

Certifications

CE, FCC Class B, RoHS, UKCA

Packing List

• 1 ASL553 board
• 1 COM port cable(Length: 250mm, 1x COM port) A81-015115-018G
• 1 SATA DATA/Power cable (Length : 300mm) A81-002144-018G
• 1 Heat sink (Height: 29 mm) A71-008353-020G

Country of Origin

Taiwan
