EC320/EC321/EC322

Overview

Home Industrial Computers Embedded Fanless PC EC320/EC321/EC322

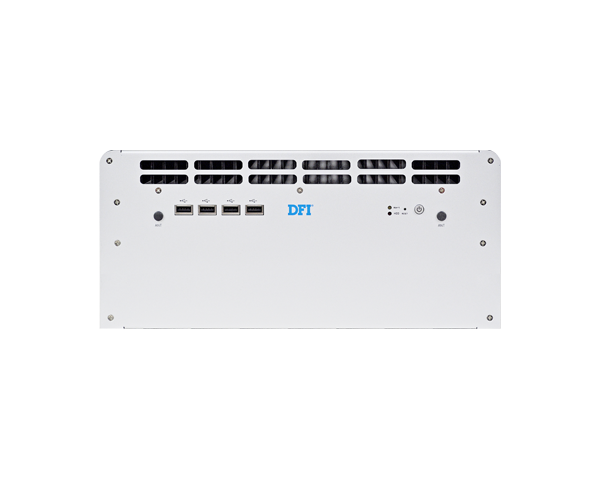

3rd/2nd Gen Intel® Core™ Modular-Designed System

Supports DDR3/DDR3L SODIMM up to 16GB

Up to 2x 2.5" SATA drive bay, 1 CF socket

Supports mSATA via the mini PCIe slot

3 expansion slots: PCIe x16 and PCI expansions

7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

Status : EOL

+Compare +Quotation

Product Comparison
You have 0 items. up to 3 products.
COMPARE NOW

Quotation
You have 0 items. up to 3 products.
QUOTE NOW

EC320/EC321/EC322 Related Tags

#Intel#PoE#Mini PCIe#Fanless Design#PCIe x16#Windows#Linux#DVI-I#DVI-D#VGA#Multiple Expansion#DDR3L#RoHS Certification#CE Certification#FCC Certification

System

Processor

3rd Generation Intel® Core™ processors (22nm process technology)
Intel® Core™ i7-3610QE (6M Cache, up to 3.3 GHz); 45W
Intel® Core™ i5-3610ME (3M Cache, up to 3.3 GHz); 35W
Intel® Core™ i3-3120ME (3M Cache, 2.4 GHz); 35W
2nd Generation Intel® Core™ processors (32nm process technology)
Intel® Core™ i7-2710QE (6M Cache, up to 3.0 GHz); 45W
Intel® Core™ i5-2510E (3M Cache, up to 3.1 GHz); 35W
Intel® Core™ i3-2330E (3M Cache, 2.2 GHz); 35W
Intel® Celeron® B810 (2M Cache, 1.6 GHz); 35W

Chipset

Intel® QM77 Express Chipset

Memory

Two 204-pin SODIMM up to 16GB
Dual Channel DDR3/DDR3L 1066/1333/1600MHz SODIMM

Graphics

Controller

Intel® HD Graphics 4000

Display

1 x DVI (DVI-D signal)
1 x VGA
VGA display resolution up to 2048x1536 @ 60Hz
DVI display resolution up to 1920x1080 @ 60Hz

Dual Displays

1 x VGA + 1 x DVI

Storage

External/Internal

1 or 2 x 2.5" SATA 3.0 Drive Bay
Standard: 1 single drive bay for 1 SATA drive
Option: Single drive bay for second SATA drive (supports RAID 0/1/5/10)
1 x CompactFlash socket

Expansion

Interface

EC320:
2 x PCI
1 x Mini PCIe (PCIe/USB/SATA)
1 x XCT0-3G Riser Card ( 1 Mini PCIe + 1 SIM, supports 3G) (available upon request)
EC321:
1 x PCI
1 x PCIe x16
1 x Mini PCIe (PCIe/USB/SATA)
1 x XCT0-3G Riser Card ( 1 Mini PCIe + 1 SIM, supports 3G) (available upon request)
EC322:
2 x PCIe x16 (x8 signal)
1 x Mini PCIe (PCIe/USB/SATA)
1 x XCT0-3G Riser Card ( 1 Mini PCIe + 1 SIM, supports 3G) (available upon request)

Audio

Audio Codec

Realtek ALC262 High Definition Audio
2 watt, 4Ω Power Amplifier

Ethernet

Controller

2 x Intel® WG82579LM PCIe with iAMT7.0 (10/100/1000Mbps)
4 x Intel® 82574 PCIe (10/100/1000Mbps) (-CR4G65)
4 x Intel® 82574 PCIe (10/100/1000Mbps) (-CR4866)
- Fully IEEE std 802.3af-2003 compliant (-CR4866)
- Power output: 48V DC 15.4 watts of power per PoE port (Type 1 Mode A 15.4W per port) (-CR4866)
Supports wireless 802.11 b/g/n via the mini PCIe slot

LED

Indicators

1 x Power LED
1 x HDD LED
1 x Alert LED

Front I/O

USB

4 x USB 2.0 (type A)

Buttons

1 x Power Button
1 x Reset Button

Wi-Fi Antenna

2 x Wi-Fi Module Antenna Hole

Rear I/O

Ethernet

EC320/EC321/EC322-CR6881, EC320/EC321/EC322-CR6G60, EC320/EC321/EC322-CRA060:
2 x GbE (RJ-45)
EC321/EC322-CR4G65:
5 x GbE (RJ-45)
EC320/EC321/EC322-CR4866:
2 x GbE (RJ-45)
4 x PoE GbE (RJ-45)

Serial

EC320/EC321/EC322-CR6881, EC320/EC321/EC322-CR6G60:
6 x RS-232/422/485 (DB-9)
EC320/EC321/EC322-CRA060:
4 x RS2-32/422/485 (DB-9)
6 x RS2-32/422/485 (5-pole terminal block)
EC321/EC322-CR4G65:
4 x RS-232/422/485 (DB-9)
EC320/EC321/EC322-CR4866:
2 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9)

USB

EC320/EC321/EC322-CR6881:
2 x USB 3.0 (type A)
2 x USB 2.0 (type A)
EC320/EC321/EC322-CR6G60, EC320/EC321/EC322-CRA060, EC321/EC322-CR4G65, EC320/EC321/EC322-CR4866:
2 x USB 3.0

DIO

EC320/EC321/EC322-CR6881, EC320/EC321/EC322-CR4866:
1 x 8-bit DIO (9-pole terminal block)
EC320/EC321/EC322-CR6G60, EC321/EC322-CR4G65:
2 x 8-bit DIO (9-pole terminal block)

Display

EC320/EC321/EC322-CR6881:
1 x VGA (DB-15)
1 x DVI-I (DVI-D signal)
EC320/EC321/EC322-CR6G60, EC320/EC321/EC322-CRA060, EC321/EC322-CR4G65, EC320/EC321/EC322-CR4866:
1 x VGA (DB-15)

Audio

1 x Speaker-out

Buttons

1 x Reset Button

Watchdog Timer

Output & Interval

System Reset, Programmable via Software from 1 to 255 Seconds

Power

Type

Wide Range 9~30V

Connector

3-Pole Terminal Block

OS Support

Windows XP, WES 2009, POSReady 2009, Windows 7, WES 7
Windows 8.1, WES 8
Linux (Distribution available upon request)

Environment

Operating Temperature

0°C ~ 60°C (-CR6881/-CR6G60/-CRA060/-CR4G65)
0°C ~ 55°C (-CR4866)

Storage Temperature

-20°C ~ 65°C

Mechanism

Construction

Aluminum + SGCC

Mounting

Wall Mount

Dimensions (W x H x D)

340.5mm x 140.5mm x 223mm (W x H x D)

Weight

9 kg

Standards and Certifications

Shock

Half Sine Wave 15G, 11ms, 3 Shock Per Axis

Vibration

IEC68-2-64 (HDD)

Certifications

CE, FCC Class A, RoHS

Packing List

1 EC320/EC321/EC322 system unit
1 SATA data/power cable
1 120W power adapter (-CR6G60/-CRA060/-CR6881/-CR4G65)
1 160W power adapter (-CR4866)
1 Quick Installation Guide

Country of Origin

Taiwan

Ordering Information

Model Name Part Number Description
Model Name :
EC320-CR6881 Part Number :
750-EC3200-300G Description :
Fanless, i7/i5/i3, QM77, 2 LAN, 1 DVI, 1 VGA, 6 COM, 8-bit GPIO, 8 USB, 2 PCI, RoHS
Model Name :
EC320-CR4866 Part Number :
750-EC3200-500G Description :
Fanless, i7/i5/i3, QM77, 1 VGA, 4 PoE Gigabit LAN, 2 LAN, 4 COM, 8-bit GPIO, 6 USB, 2 PCI, RoHS
Model Name :
EC321-CR6G60 Part Number :
750-EC3210-100G Description :
Fanless, i7/i5/i3, QM77, 2 LAN, 1 VGA, 6 COM, 16-bit GPIO, 6 USB, 1 PCI, 1 PCIe x16, RoHS
Model Name :
EC321-CRA060 Part Number :
750-EC3210-200G Description :
Fanless, i7/i5/i3, QM77, 2 LAN,1 VGA, 10 COM, 6 USB, 1 PCI, 1 PCIe x16, RoHS
Model Name :
EC321-CR6881 Part Number :
750-EC3210-300G Description :
Fanless, i7/i5/i3, QM77, 2 LAN, 1 DVI, 1 VGA, 6 COM, 8-bit GPIO, 8 USB, 1 PCI, 1 PCIe x16, RoHS
Model Name :
EC322-CR6G60 Part Number :
750-EC3220-100G Description :
Fanless, i7/i5/i3, QM77, 2 LAN, 1 VGA, 6 COM, 16-bit GPIO, 6 USB, 2 PCIe x16, RoHS
Model Name :
EC321-CR4866 Part Number :
750-EC3210-500G Description :
Fanless, i7/i5/i3, QM77, 1 VGA, 4 PoE Gigabit LAN, 2 LAN, 4 COM, 8-bit GPIO, 6 USB, 1 PCI, 1 PCIe x16, RoHS
Model Name :
EC320-CRA060 Part Number :
750-EC3200-200G Description :
Fanless, i7/i5/i3, QM77, 2 LAN, 1 VGA, 10 COM, 6 USB, 2 PCI, RoHS
Model Name :
EC322-CRA060 Part Number :
750-EC3220-200G Description :
Fanless, i7/i5/i3, QM77, 2 LAN,1 VGA, 10 COM, 6 USB, 2 PCIe x16, RoHS
Model Name :
EC322-CR6881 Part Number :
750-EC3220-300G Description :
Fanless, i7/i5/i3, QM77, 2 LAN, 1 DVI, 1 VGA, 6 COM, 8-bit GPIO, 8 USB, 2 PCIe x16, RoHS
Model Name :
EC322-CR4866 Part Number :
750-EC3220-000G Description :
Fanless, i7/i5/i3, QM77, 4 PoE Gigabit LAN, 2 LAN, 1 VGA, 4 COM, 8-bit GPIO, 6 USB, 2 PCIe x16, RoHS
Model Name :
EC321-CR4G65 Part Number :
750-EC3210-A00G Description :
Fanless, i7/i5/i3, QM77, 5 LAN, 1 VGA, 4 COM, 16-bit GPIO, 6 USB, 1 PCI, 1 PCIe x16, RoHS
Model Name :
EC322-CR4G65 Part Number :
750-EC3220-400G Description :
Fanless, i7/i5/i3, QM77, 5 LAN, 1 VGA, 4 COM, 16-bit GPIO, 6 USB, 2 PCIe x16, RoHS
Model Name :
EC320-CR6G60 Part Number :
750-EC3200-100G Description :
Fanless, i7/i5/i3, QM77, 2 LAN, 1 VGA, 6 COM, 16-bit GPIO, 6 USB, 2 PCI, RoHS

Optional Items

Item Name Part Number Description
Item Name :
CPU Part Number :
785-CP988BML Description :
CPU, Socket 988B, Long-term support, RoHS
Item Name :
8GB DDR3L Part Number :
785-RSOD38G-L Description :
SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 8GB, RoHS
Item Name :
4GB DDR3L Part Number :
785-RSOD34G-L Description :
SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 4GB, RoHS
Item Name :
2GB DDR3L Part Number :
785-RSOD32G-L Description :
SODIMM, DDR3L Module (supports dual voltage 1.5V DDR3/1.35V DDR3L), 2GB, RoHS
Item Name :
1GB DDR3 Part Number :
785-RSOD31G Description :
SODIMM, DDR3 Module, 1GB, RoHS
Item Name :
500GB HDD Part Number :
785-H25500G Description :
2.5” SATA HDD, 500GB, RoHS
Item Name :
320GB HDD Part Number :
785-H25320G Description :
2.5” SATA HDD, 320GB, RoHS
Item Name :
1TB SSD Part Number :
785-S251TBG Description :
2.5" SATA SSD, 1TB MLC, RoHS
Item Name :
512GB SSD Part Number :
785-S25512G Description :
2.5" SATA SSD, 512GB MLC, RoHS
Item Name :
256GB SSD Part Number :
785-S25256G Description :
2.5" SATA SSD, 256GB MLC, RoHS
Item Name :
128GB SSD Part Number :
785-S25128G Description :
2.5" SATA SSD, 128GB MLC, RoHS
Item Name :
64GB SSD Part Number :
785-S25064G Description :
2.5" SATA SSD, 64GB MLC, RoHS
Item Name :
HDD Bracket Part Number :
761-EC3000-200G Description :
2nd HDD Bracket kit, RoHS
Item Name :
Wi-Fi Part Number :
761-110091-000G Description :
Wi-Fi Kit, RoHS
Item Name :
3G Part Number :
785-EC3G Description :
For EC3xx Series and EC2xx Series 3G Module
Item Name :
8GB CF Part Number :
785-CF08G Description :
CF Card, 8G, Industrial Grade SLC
Item Name :
128GB mSATA Part Number :
785-MS128GMF Description :
mSATA Card, 128GB MLC, RoHS
Item Name :
64GB mSATA Part Number :
785-MS64GMF Description :
mSATA Card, 64GB MLC, RoHS
Item Name :
32GB mSATA Part Number :
785-MS32GMF Description :
mSATA Card, 32GB MLC, RoHS
Item Name :
16GB mSATA Part Number :
785-MS16GMF Description :
mSATA Card, 16GB MLC, RoHS
Item Name :
8GB mSATA Part Number :
785-MS08GMF Description :
mSATA Card, 8GB MLC, RoHS
Item Name :
4GB mSATA Part Number :
785-MS04GMF Description :
mSATA Card, 4GB MLC, RoHS
Item Name :
Power Cord Part Number :
785-PWRD Description :
Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS
Item Name :
Wall Mount Part Number :
785-EC3WMK Description :
Wall Mount Kit

* 785-XXX is a group number instead of a unique part number. Please contact your regional sales representative if you need more information.

EC320/EC321/EC322｜Intel®｜Industrial Computers｜DFI

EC320/EC321/EC322 Overview

3rd/2nd Gen Intel® Core™ Modular-Designed System

Supports DDR3/DDR3L SODIMM up to 16GB

Up to 2x 2.5" SATA drive bay, 1 CF socket

Supports mSATA via the mini PCIe slot

3 expansion slots: PCIe x16 and PCI expansions

7-Year CPU Life Cycle Support Until Q3' 18 (Based on Intel IOTG Roadmap)

EC320/EC321/EC322 Feature

Fanless Design

DVI-D

Multiple Expansion

DDR3L

Wide Voltage: 9~30V DC-in
